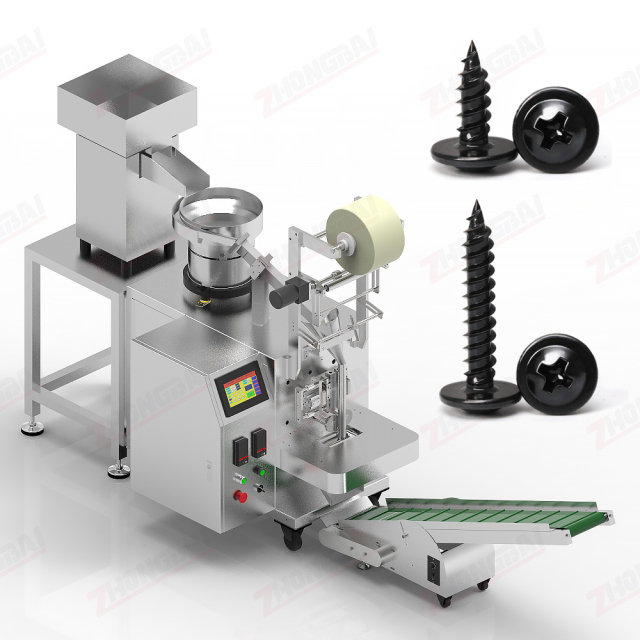

Automatic Screw Continuous Bag Packing Machine with Refill Hopper
No.ZB-S287

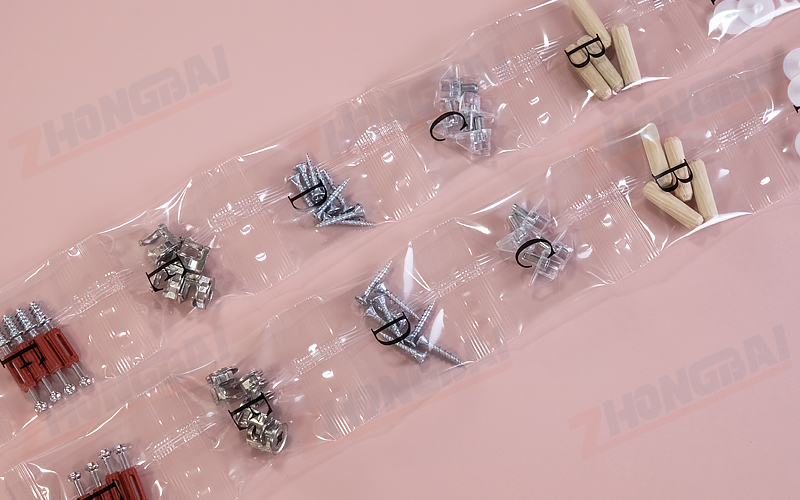

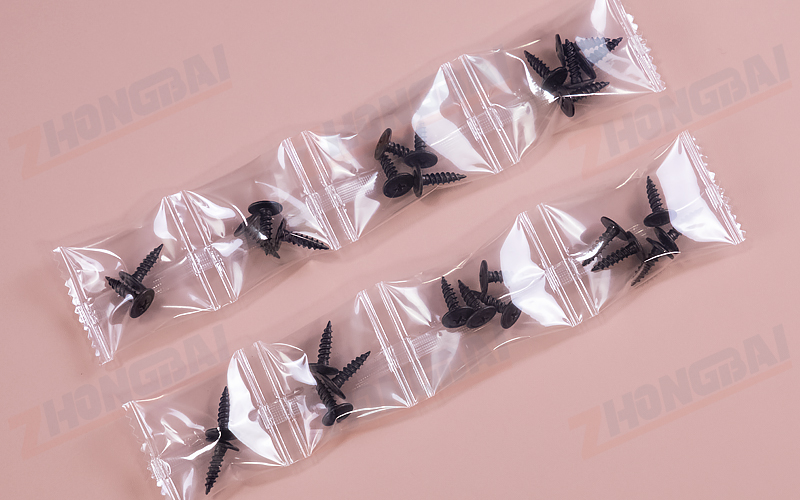

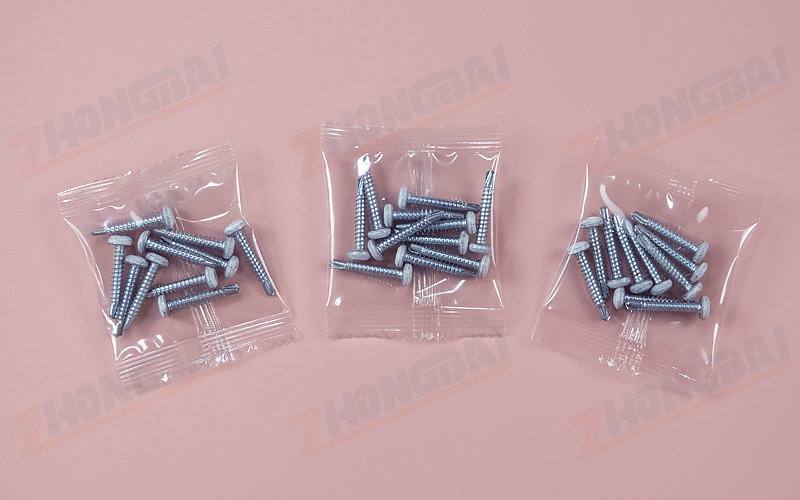

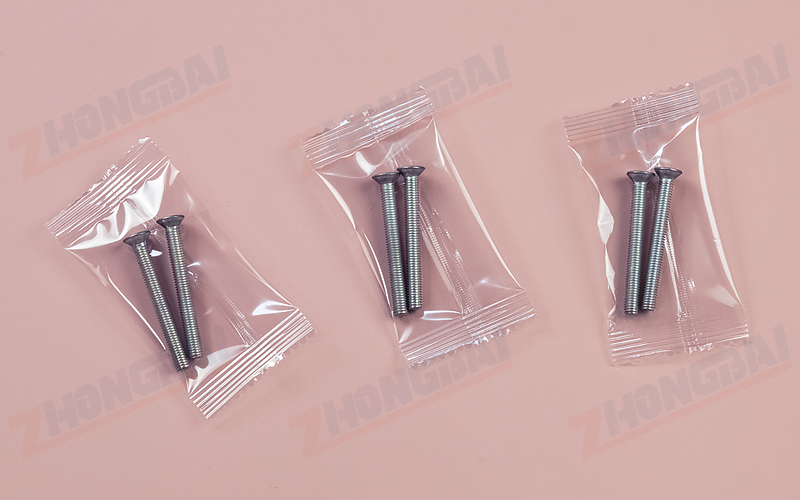

▶ ZB-60D1 automatic screw counting packing machine with refill hopper. ▶ The machine is suitable for wood screw, self-tapping screw, drywall screw, panel screw, machine screw etc. ▶ This machine can achieve two packaging modes: individual packaging and continuous bag packaging. Both the bag length and screw count are individually adjustable for continuous bag packaging.
User Manual One Year Warranty Install & Tutorial Videos Custom Packing Solution Free Lifetime Technical Support
Highlights: ▶ This automatic screw packing machine is engineered for maximum versatility, capable of producing both individual single bags and a continuous chain of linked bags with a fast, straightforward switchover. ▶ The machine is equipped with a refill hopper, significantly extending unmanned operation time by preventing stoppages caused by a material shortage in the vibratory bowl feeder.
Features:
● Automation: automatically perform tasks such as feeding, counting, filling, bagging, sealing, output production calculating and even labeling or printing, significantly reducing the need for manual labor.
● High Accuracy Counting: advanced sensors and software algorithms ensure precise counting for the components, minimizing errors and waste.
● User-Friendliness: 7 inch touchscreen with English user-friendly interface that make it easy for operators to set up and monitor the packaging process.
● Self Diagnosis: the machine incorporates fault detection and diagnosis systems that can automatically identify and alert operators to potential issues, reducing downtime and maintenance costs.
● Durable Structure: constructed with stainless steel and designed for easy cleaning and maintenance.
● Customizable Solutions: our machines accommodate a wide variety of components, offering versatile solutions to meet diverse packaging needs. Customization options allow the equipment to be tailored to specific production requirements, enhancing flexibility and operational efficiency.

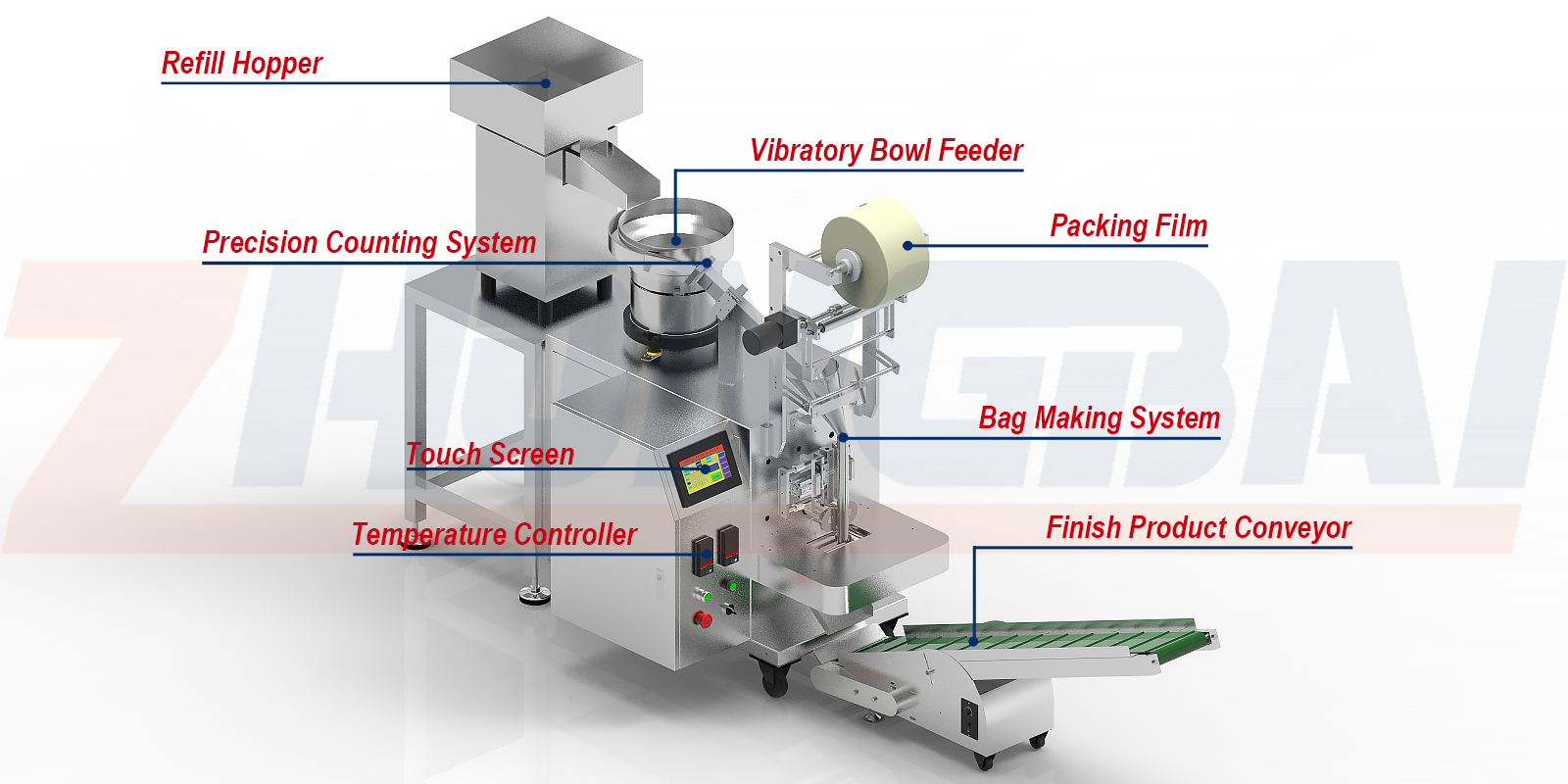

Main Structure:
Technical Specificatioin: Model: ZB-60D1 Capacity: 10-50bags/min Counting quantity: set on touch screen Bag width: max. 150mm | 200mm | 250mm | customize Bag length: max. 200mm | 300mm | 400mm | customize Total power: 1.8KW Voltage: 220V, 50/60HZ Machine Dimension: (L)2100×(W)750×(H)1500mm Packing material: Plastic film | Paper film | Premade pouch
