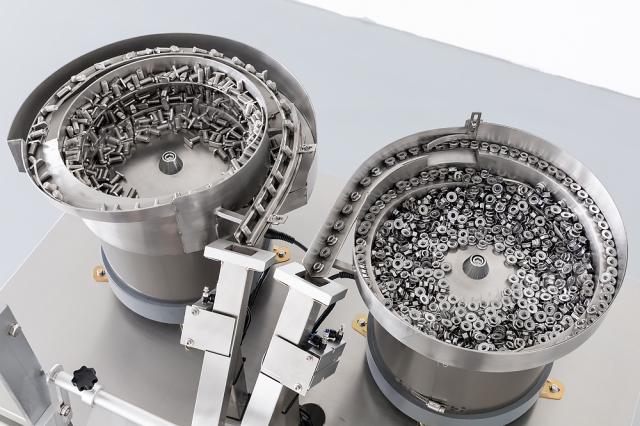

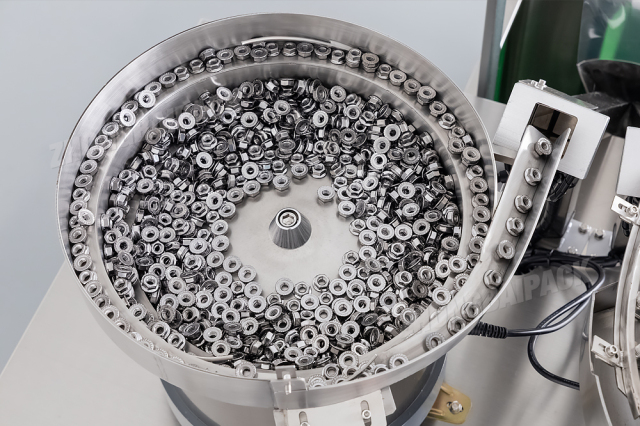

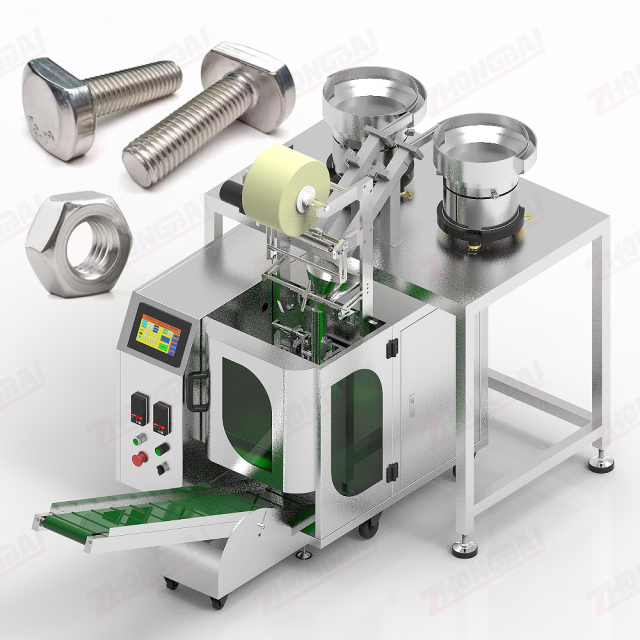

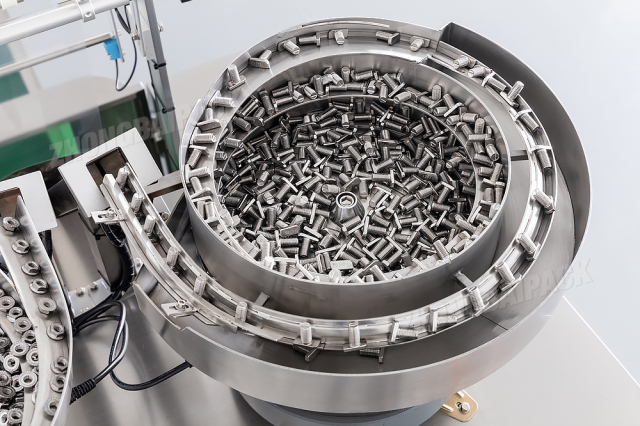

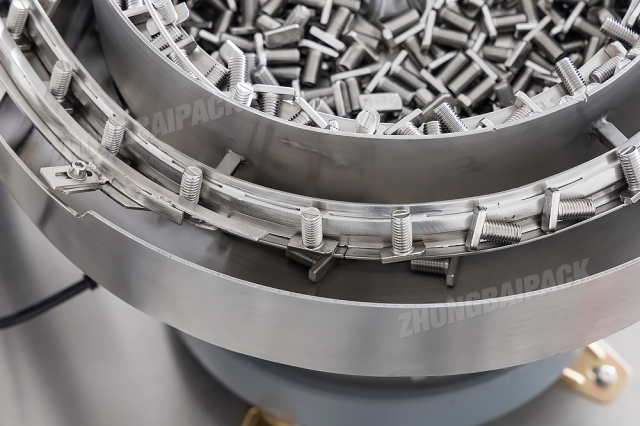

▶ ZB-60D2 Automatic Bolt and Nut Packing Machine with two Bowl Feeders. ▶ Compatible with various bolts (carriage bolt, hex bolt, T bolt) and nuts (hex nut, flange nut, lock nut) in a range of sizes. ▶ The machine supports both single-type and mixed-type packing. This is achieved by switching the bowl feeders on or off and setting the quantity on the HMI. ▶ The machine allows for easy adjustment of the quantity per package , providing flexibility for your specific packaging requirements.
User Manual One Year Warranty Install & Tutorial Videos Custom Packing Solution Free Lifetime Technical Support

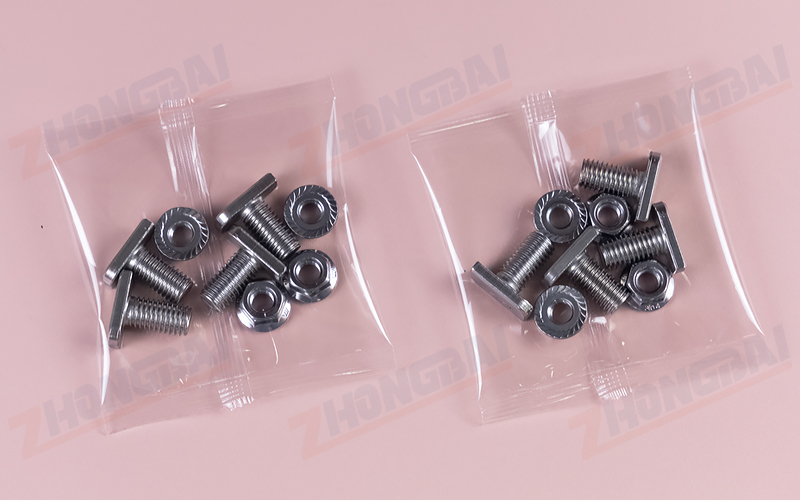

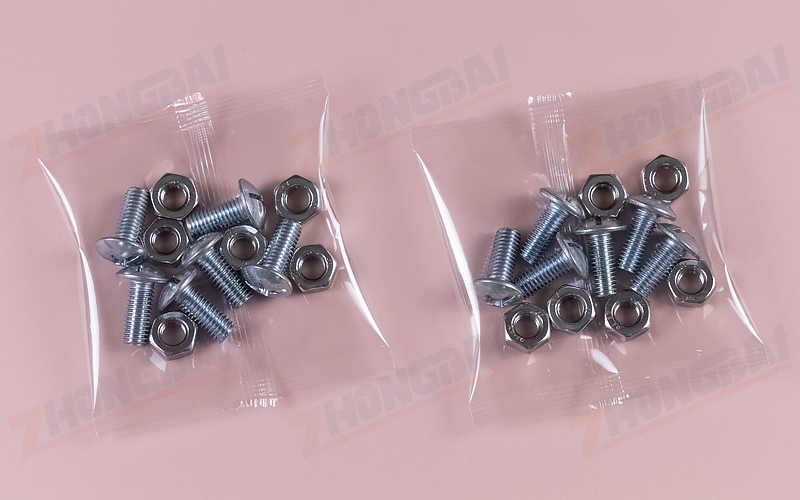

▶ Compatible with various bolts (carriage bolt, hex bolt, T bolt) and nuts (hex nut, flange nut, lock nut) in a range of sizes.

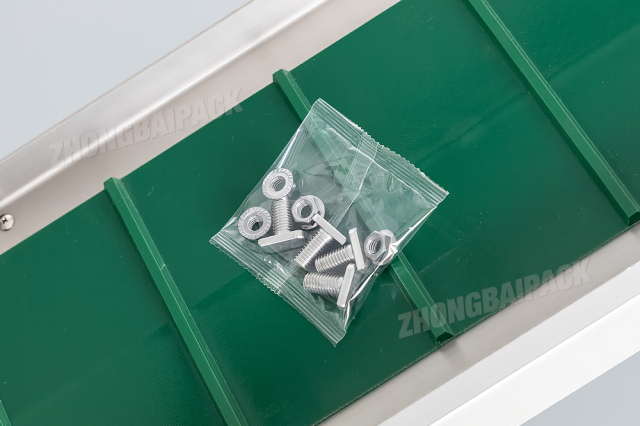

▶ The machine allowing it to handle either sets of bolt and nut or a single type, easy adjustment the counting quantity per package and the total number of packages in an order, providing flexibility for your specific packaging requirements.
Features:

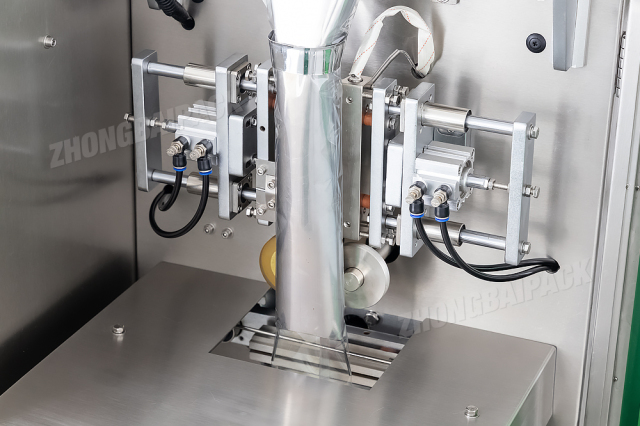

● Automation: automatically perform tasks such as feeding, counting, filling, bagging, sealing, output production calculating and even labeling or printing, significantly reducing the need for manual labor.
● High Accuracy Counting: advanced sensors and software algorithms ensure precise counting for the components, minimizing errors and waste.
● User-Friendliness: 7 inch touchscreen with English user-friendly interface that make it easy for operators to set up and monitor the packaging process.
● Self Diagnosis: the machine incorporates fault detection and diagnosis systems that can automatically identify and alert operators to potential issues, reducing downtime and maintenance costs.
● Durable Structure: constructed with stainless steel and designed for easy cleaning and maintenance.
● Customizable Solutions: our machines accommodate a wide variety of components, offering versatile solutions to meet diverse packaging needs. Customization options allow the equipment to be tailored to specific production requirements, enhancing flexibility and operational efficiency.
Main Structure:
Technical Specificatioin: Model: ZB-60D2 Capacity: 10-50bags/min Counting quantity: set on touch screen Bag width: max. 150mm | 200mm | 250mm | customize Bag length: max. 200mm | 300mm | 400mm | customize Total power: 2.1KW Voltage: 220V, 50/60HZ Machine Dimension: (L)2150×(W)1050×(H)1500mm Packing material: Plastic film | Paper film | Premade pouch
