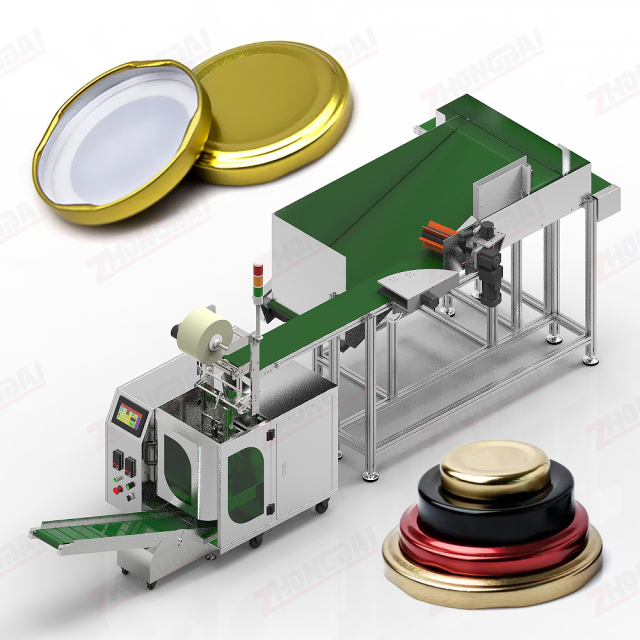

▶ ZB-HC60 high speed bottle lid counting packing machine. ▶ High speed counting up to 600pcs/min. ▶ Handles bottle lids up to 80mm outer diameter. ▶ Quick changeover via human machine interface.
User Manual One Year Warranty Install & Debug Videos Custom Packing Solution Free Lifetime Technical Support
Highlights: ▶ The system is capable of counting bottle lids with different diameters and heights, accommodating outer diameters of up to 80 mm. ▶ Quick changeover is performed directly via the the human-machine interface (HMI).
Features:
● Automation: automatically perform tasks such as feeding, counting, filling, bagging, sealing, output production calculating and even labeling or printing, significantly reducing the need for manual labor.
● High Accuracy Counting: advanced sensors and software algorithms ensure precise counting for the components, minimizing errors and waste. ● Quick Changeover: o-ring dimensions are configured directly on the touch screen, eliminating the need for mechanical adjustments when changing over between sizes. Counting speed is also adjustable for optimal throughput.
● User-Friendly Interface: touchscreen human-machine Interface for easy operation, parameter setting, real-time monitoring and troubleshooting.
● Self Diagnosis: the machine incorporates fault detection and diagnosis systems that can automatically identify and alert operators to potential issues, reducing downtime and maintenance costs.
● Durable Structure: constructed with stainless steel and designed for easy cleaning and maintenance.
Main Structure:
Technical Specificatioin: Model: ZB-HC60 Counting quantity: set on touch screen Bag width: max. 150mm | 200mm | 250mm | customize Bag length: max. 200mm | 300mm | 400mm | customize Total power: 1.8KW Voltage: 220V, 50/60HZ Packaging material: Plastic film Machine Dimension: (L)3200×(W)1200×(H)1900mm
