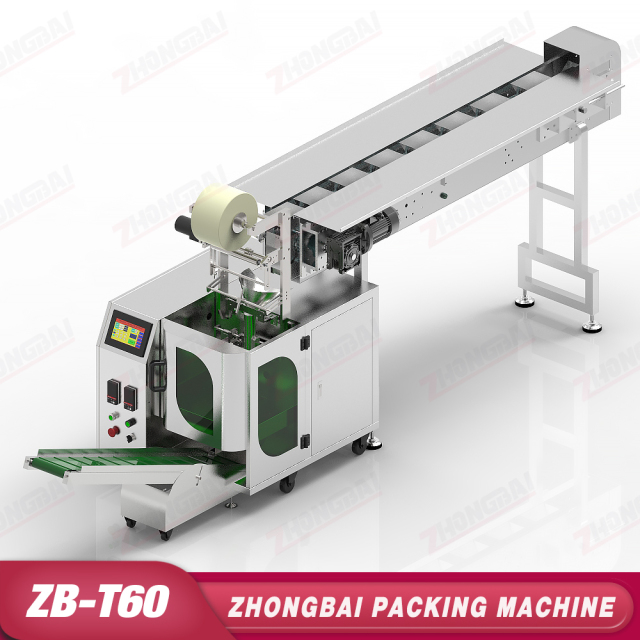

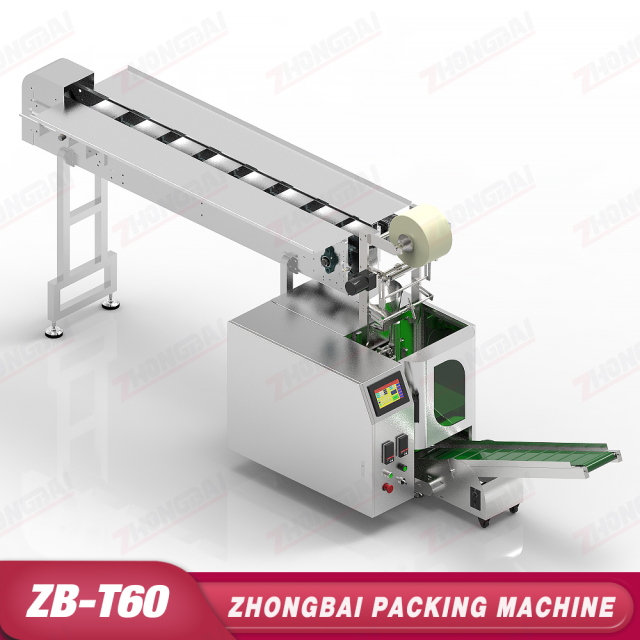

Bucket Conveyor Packing Machine

Application:
● Fasteners: screw, bolt, nut, washer, rivets, nails etc.
● Plastic/Rubber Parts: wall anchor, rubber o-rings, toys, lego building bricks, small plastic parts.
● Hardware Parts: hardware components, hardware connectors, metal parts etc.
● Furniture Accessories: furniture connectors, furniture fasteners, furniture fittings, door handle, hinge etc.
● Others: small hardware or plastic parts, regular shape or irregular shape of parts.

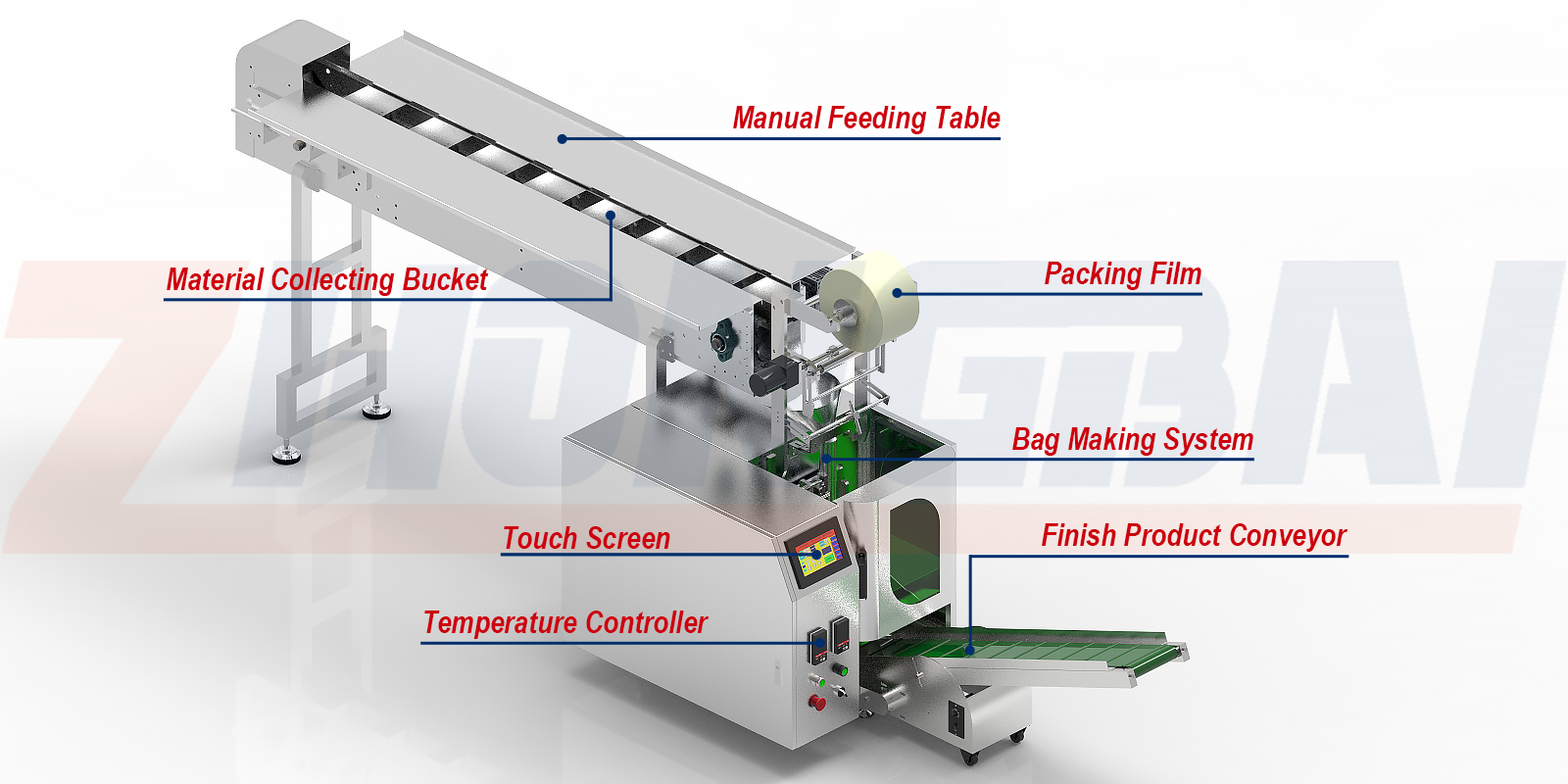

Main Structure:



Features:
● Manual Feeding: The operator places components onto the bucket conveyor, which then moves and synchronizes with the bagging system via integrated controls.
● Cost-Effective Solution: ideal for versatile and low-volume packaging operations and featuring a significantly lower initial investment than fully automatic systems.
● High Flexibility: quick changeover between different products and packaging formats with minimal adjustments.
● User-Friendly Interface: touchscreen human-machine Interface for easy operation, parameter setting, real-time monitoring and troubleshooting.
● Self Diagnosis: the machine incorporates fault detection and diagnosis systems that can automatically identify and alert operators to potential issues, reducing downtime and maintenance costs.
● Durable Structure: constructed with stainless steel and designed for easy cleaning and maintenance.
● Customizable Solutions: our machines accommodate a wide variety of components, offering versatile solutions to meet diverse packaging needs. Customization options allow the equipment to be tailored to specific production requirements, enhancing flexibility and operational efficiency.


Technical Specificatioin:
Model: ZB-T60
Capacity: 10-30 bags/min
Bag width:  max. 150mm | 200mm | 250mm | customize
Bag length: max. 200mm | 300mm | 400mm | customize
Total power: 1.8KW
Voltage: 220V, 50/60HZ
Machine Dimension: (L)3800×(W)750×(H)1500mm
Packing material: Plastic film | Paper film | Premade pouch



Packaging Samples:


Optioinal Devices:
