▶ ZB-W60 Fastener Counting Weighing Packing Machine. ▶ It provides a cost-effective, flexible solution for low-volume packaging, enabling quick product changeovers with minimal adjustments—ideal for diverse, small-batch operations. ▶ The intelligent system weighs fasteners or components and calculates the equivalent piece count. Filling commences upon reaching the preset target and is automatically blocked in the event of over-quantity or under-quantity conditions, with corresponding alerts shown on the touchscreen.
User Manual One Year Warranty Install & Debug Videos Custom Packing Solution Free Lifetime Technical Support
Highlights: ▶ This fastener counting weighing packing machine provides a cost-effective, flexible solution for low-volume packaging, enabling quick product changeovers with minimal adjustments—ideal for diverse, small-batch operations. ▶ The intelligent system weighs small components and calculates the equivalent piece count. Filling commences upon reaching the preset target and is automatically blocked in the event of over-quantity or under-quantity conditions, with corresponding alerts shown on the touchscreen.
Features: ● Count-by-Weight: the operator enters the weight of a single item and sets the required packaging quantity, and the machine automatically calculates the total packaging weight. ● Count-to-Fill Control:The operator places components onto the weighing conveyor, and the system calculates and converts them into quantity. When the target quantity reaches the set packing quantity, the conveyor moves forward and begins filling. Over-quantity or under-quantity conditions are displayed on the touch screen, and filling will not proceed. ● Cost-Effective Solution:ideal for versatile and low-volume packaging operations and featuring a significantly lower initial investment than fully automatic systems. ● High Flexibility:quick changeover between different products and packaging formats with minimal adjustments. ● User-Friendly Interface: touchscreen human-machine Interface for easy operation, parameter setting, real-time monitoring and troubleshooting. ● Self Diagnosis: the machine incorporates fault detection and diagnosis systems that can automatically identify and alert operators to potential issues, reducing downtime and maintenance costs. ● Durable Structure: constructed with stainless steel and designed for easy cleaning and maintenance. ● Customizable Solutions:our machines accommodate a wide variety of components, offering versatile solutions to meet diverse packaging needs. Customization options allow the equipment to be tailored to specific production requirements, enhancing flexibility and operational efficiency.
Main Structure:
Technical Specificatioin: Model: ZB-W60 Capacity: 10-20 bags/min Weighing range:10-2000g/customize Bag width: max. 150mm | 200mm | 250mm | customize Bag length: max. 200mm | 300mm | 400mm | customize Total power: 1.5KW Voltage: 220V, 50/60HZ Machine Dimension: (L)2200×(W)900×(H)1600mm Packing material: Plastic film | Paper film | Premade pouch

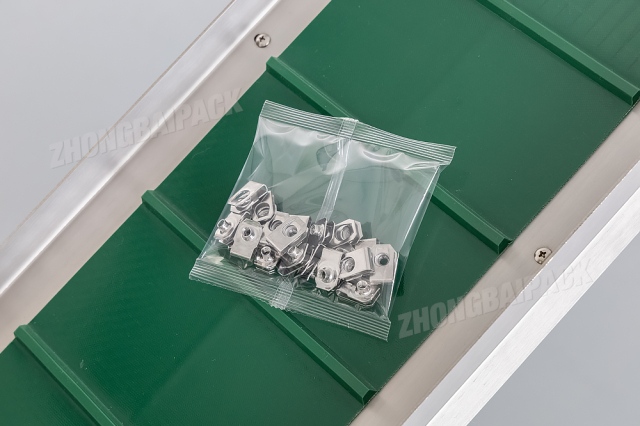

Packaging Samples:
Optioinal Devices:
FAQ
1. How does an automatic fastener counting and weighing packing machine work?
This automated packaging system combines a high accuracy weighing system and an automatic piece-count conversion function, which converts weight into quantity in real time and displays the count automatically on the touch screen. Feeding: the operator manually feeds fasteners into the weighing platform. Weighing: the system weight the bulk fasteners on the platform Count by weight: The system converts weight into quantity in real time and displays the count on the touch screen. If the quantity is over, it triggers an alarm and the operator should remove the excess parts. If the quantity is short, it displays the shortage and the operator should add the missing parts. Filling : when the quantity matches the target, the conveyor moves forward and fills the bulk fasteners into bags. Bagging : the machine automatically forms the packaging bag, fills it with the components, seals it.
2. What types of fasteners and parts can this machine package?
The machine is suitable for a wide range of fasteners and components, such as screws, bolts, washers, nuts, rivets, hardware components, and plastic moulding parts, etc.
3. Can this packaging machine integrate printing and labeling device?
Yes, Absolutely. We offer options to integrate thermal transfer printers and automatic labeling device. This allows real-time printing of barcodes, QR codes, batch numbers, manufacturing dates, and company logos directly onto the bags, or applying labels as needed.
