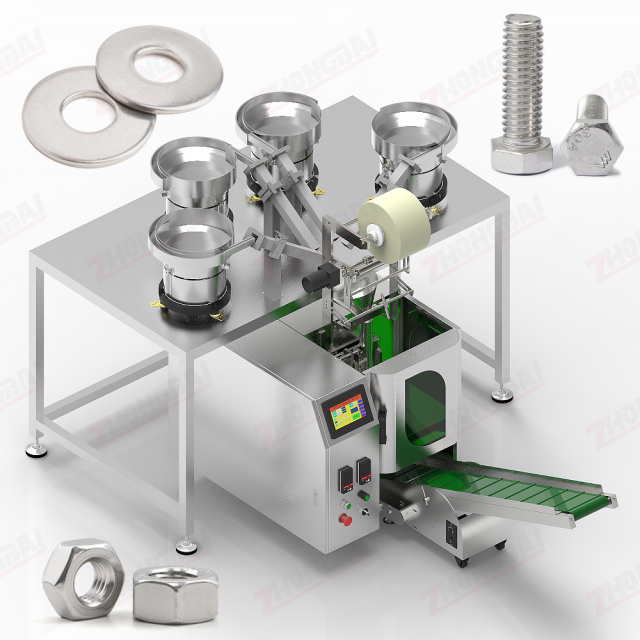

Hardware Fastener Kitting Packing Machine with 4 Bowl Feeders
No.ZB-F270
▶ ZB-60D4 Hardware Fastener Kitting Packing Machine with 4 Bowl Feeders. ▶ The flexible design of the vibratory bowl feeders enables quick changeover between different size of screws, bolts, washers, and nuts.
User Manual One Year Warranty Install & Tutorial Videos Custom Packing Solution Free Lifetime Technical Support
▶ This fastener kitting packing machine integrates flexible vibratory bowl feeders enables quick changeover between different parts, allowing it to handle bolts, screws, washers, and nuts in a range of specifications. ▶ The machine allows for easy adjustment of the quantity of fasteners per package and the total number of packages in an order, providing flexibility for your specific packaging requirements.
Features:
● Automation: automatically perform tasks such as feeding, counting, filling, bagging, sealing, output production calculating and even labeling or printing, significantly reducing the need for manual labor.
● High Accuracy Counting: advanced sensors and software algorithms ensure precise counting for the components, minimizing errors and waste.
● User-Friendliness: 7 inch touchscreen with English user-friendly interface that make it easy for operators to set up and monitor the packaging process.
● Self Diagnosis: the machine incorporates fault detection and diagnosis systems that can automatically identify and alert operators to potential issues, reducing downtime and maintenance costs.
● Durable Structure: constructed with stainless steel and designed for easy cleaning and maintenance.
● Customizable Solutions:our machines accommodate a wide variety of components, offering versatile solutions to meet diverse packaging needs. Customization options allow the equipment to be tailored to specific production requirements, enhancing flexibility and operational efficiency.
Main Structure:
Technical Specificatioin: Model: ZB-60D4 Capacity: 10-50bags/min Counting quantity: set on touch screen Bag width: max. 150mm | 200mm | 250mm | customize Bag length: max. 200mm | 300mm | 400mm | customize Total power: 2.7KW Voltage: 220V, 50/60HZ Machine dimension: (L)2350×1600×(H)1500mm Packing material: Plastic film | Paper film | Premade pouch
Packaging Samples:
Optioinal Devices:
FAQ
1. How does the fastener kitting packing machine work?
The machine utilizes multiple vibratory bowl feeders (e.g., 4 bowl feeders) to align and feed different hardware components. Advanced optical sensors and software algorithms accurately count the preset quantities of each part. The components are then automatically dropped into the forming bag, which is securely sealed, date-coded, and outputted at speeds ranging from 10 to 50 bags per minute.
2. Can I adjust the quantity of each fastener type per bag?
Yes, absolutely. Operators can easily adjust the quantity of each individual fastener component and the total number of packages per batch directly through the 7-inch English touch screen interface. This makes switching between different kit recipes fast and intuitive.
3. Does the kitting packaging machine support integrated printing and labeling functions?
Yes, Absolutely. We offer options to integrate thermal transfer printers and automatic labeling device. This allows real-time printing of barcodes, QR codes, batch numbers, manufacturing dates, and company logos directly onto the bags, or applying labels as needed.
