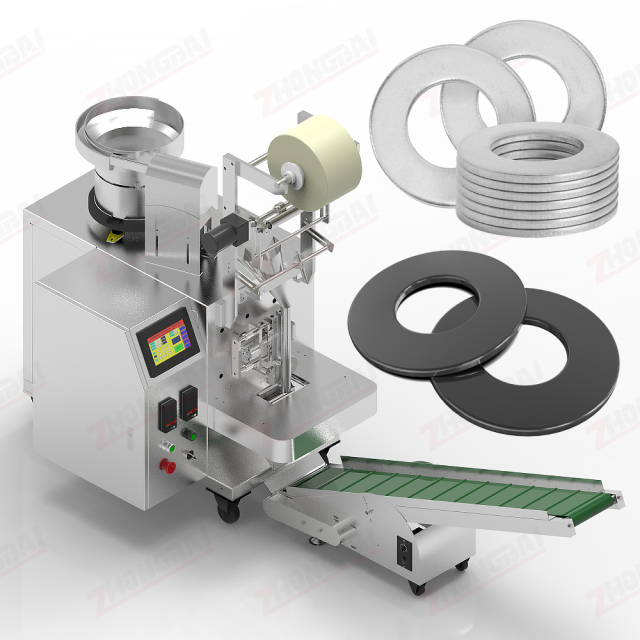

▶ ZB-60D1 Hardware Flat Washer Counting Packing Machine with Intelligent Printer. ▶ High-speed, accurate packaging of flat washers, hardware washers, and rubber washers etc. ▶ The machine is equipped with an intelligent printer that can print information directly onto the bags.
User Manual One Year Warranty Install & Tutorial Videos Custom Packing Solution Free Lifetime Technical Support
Hightlights: ▶ This washer counting packing machine can accommodate flat washers up to 50mm in diameter, depending on its configuration. ▶ The machine allows for easy adjustment of the quantity of washers per package and the total number of packages in an order, providing flexibility for your specific packaging requirements.
Features:
● Automation: automatically perform tasks such as feeding, counting, filling, bagging, sealing, output production calculating and even labeling or printing, significantly reducing the need for manual labor.
● High Accuracy Counting: advanced sensors and software algorithms ensure precise counting for the components, minimizing errors and waste.
● User-Friendliness: 7 inch touchscreen with English user-friendly interface that make it easy for operators to set up and monitor the packaging process.
● Self Diagnosis: the machine incorporates fault detection and diagnosis systems that can automatically identify and alert operators to potential issues, reducing downtime and maintenance costs.
● Durable Structure: constructed with stainless steel and designed for easy cleaning and maintenance.
● Customizable Solutions: our machines accommodate a wide variety of components, offering versatile solutions to meet diverse packaging needs. Customization options allow the equipment to be tailored to specific production requirements, enhancing flexibility and operational efficiency.
Main Structure:
Technical Specificatioin: Model: ZB-60D1 Capacity: 10-50bags/min Counting quantity: set on touch screen Bag width: max. 150mm | 200mm | 250mm | customize Bag length: max. 200mm | 300mm | 400mm | customize Total power: 1.8KW Voltage: 220V, 50/60HZ Machine Dimension: (L)2100×(W)750×(H)1500mm Packing material: Plastic film | Paper film | Premade pouch

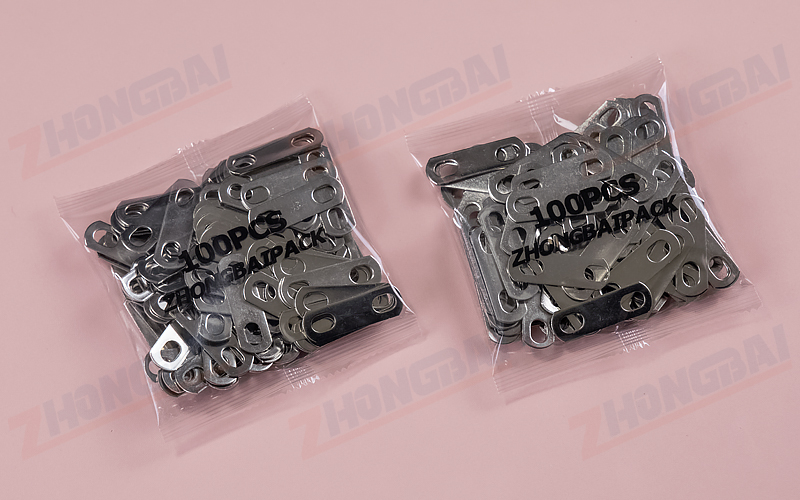

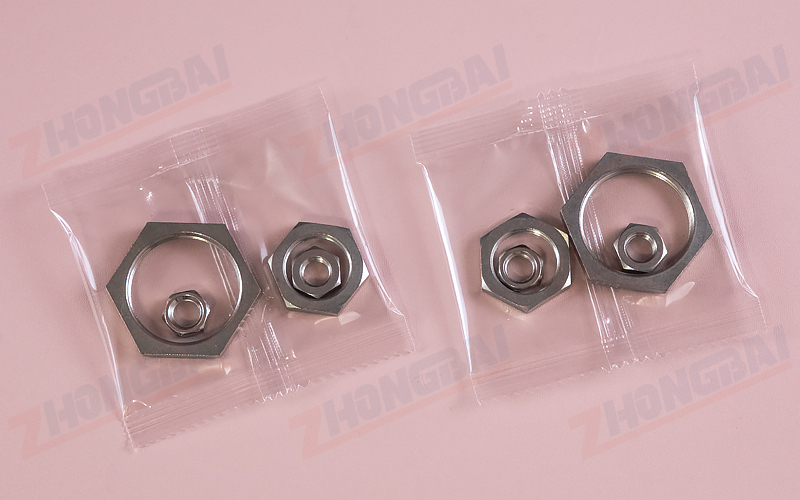

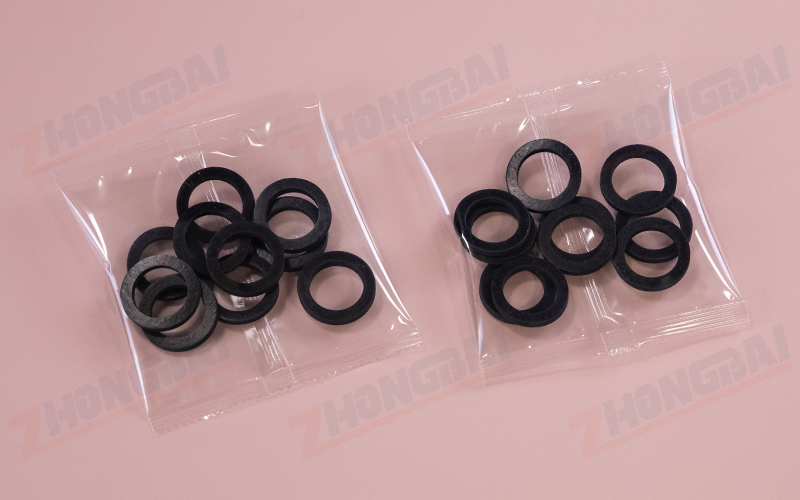

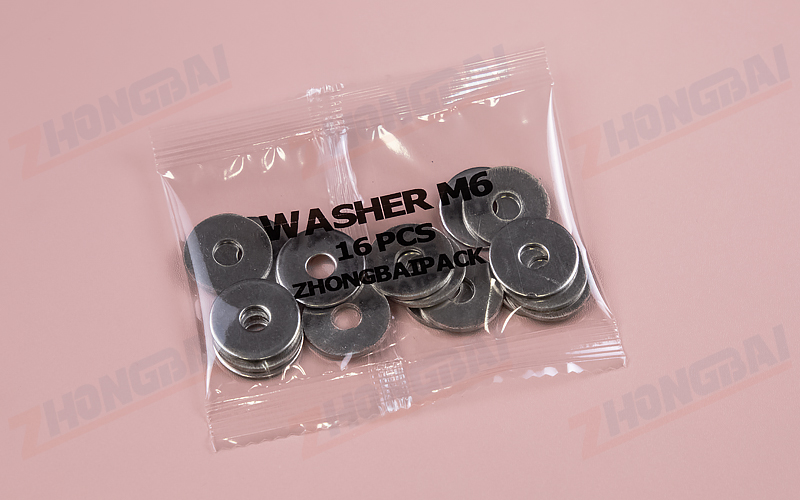

Packaging Samples:
Optioinal Devices:
FAQ
1. Can the machine handle washers of different sizes?
Yes, the machine suit a specific washer size range. Please provide your washer specifications for a customized solution.
2. Is the machine easy to operate and adjust the counting quantity?
Yes. It features a touchscreen human-machine interface (HMI). Operators can easily set the desired count per bag and the total number of bags for an order directly on the screen, with real-time monitoring of the packaging process.
3. What kind of packaging film materials can be used?
The machine supports a wide range of heat-sealable laminated films, such as OPP/PE, PET/PE, and PET/AL/PE. The high-precision PID temperature control system ensures stable and secure sealing for various film types.
