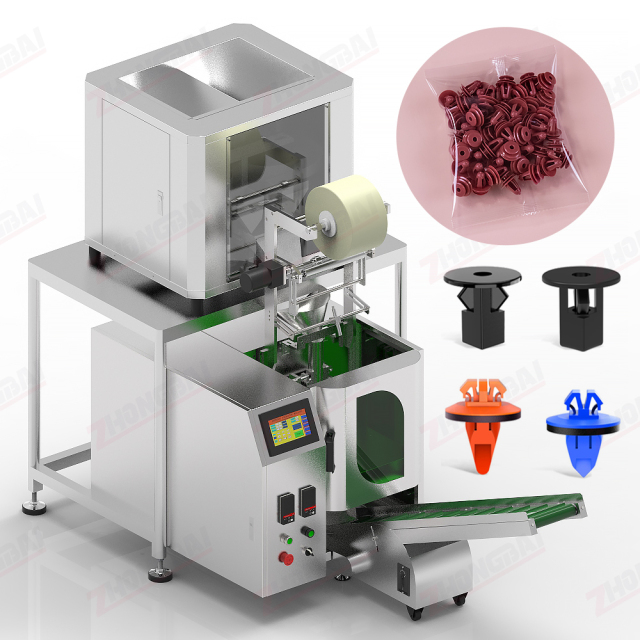

Automatic Plastic Fastener Packing Machine

Highlights:
▶ This plastic fastener packing machine incorporates high-precision electronic scales, each weighing scale serving as an independent metering unit that can individually complete the target weighing process.
▶ The feeding features two-stage control with fast and slow speeds: fast feeding ensures efficiency, while slow feeding guarantees accuracy, and the combination of the two stage speed achieves high-precision dosing.
▶ The equipment supports flexible configuration of 1 to 4 weighing heads, which can be matched to the packing speed to meet different production output requirements.



Features:
● Automation: automatically perform tasks such as feeding, weiging, filling, bagging, sealing, output production calculating and even labeling or printing, significantly reducing the need for manual labor.
● High Accuracy Weighing: incorporates high-precision electronic scales to ensure consistent weight for each package while accommodating various product sizes and shapes.
● User-Friendly Interface: touchscreen human-machine interface for easy operation, parameter setting, real-time monitoring and troubleshooting.
● Self Diagnosis: the machine incorporates fault detection and diagnosis systems that can automatically identify and alert operators to potential issues, reducing downtime and maintenance costs.
● Durable Structure: constructed with stainless steel and designed for easy cleaning and maintenance.
● Customizable Solutions: our machines accommodate a wide variety of components, offering versatile solutions to meet diverse packaging needs. Customization options allow the equipment to be tailored to specific production requirements, enhancing flexibility and operational efficiency.


Main Structure:



Technical Specificatioin:
Model: ZB-W60Q2
Capacity: 3-20bags/min
Weighing range: 2-100g/50-500g/customize
Bag width: max. 150mm | 200mm | 250mm | customize
Bag length: max. 200mm | 300mm | 400mm | customize
Total power: 1.8KW
Voltage: 220V, 50/60HZ
Machine Dimension: (L)1900×(W)1050×(H)1500mm
Packing material: Plastic film | Paper film | Premade pouch


Packaging Samples:


Optioinal Devices:



FAQ

1. What types of plastic fastener can this packing machine handle?

The ZB-W60Q2 Weighing Packing Machine is a versatile system designed for a wide range of small plastic fasteners and components. It can effortlessly handle loose, non-sticky, and non-overlapping items such as plastic rivets, plastic anchors, wall plugs, plastic clips, push pins and other custom molded plastic components. It can accommodate components up to 40mm in length (with options up to 60mm available based on configuration).

2. How does the machine ensure high weighing accuracy？

The machine incorporates high-precision electronic scales, the feeding features two-stage control with fast and slow speeds: fast feeding ensures efficiency, while slow feeding guarantees accuracy, and the combination of the two stage speed achieves high-precision dosing.

3. Can the machine apply the label on the bags?

Yes, the machine can be integrated with the labelling device to apply a label on the bags automatically. It can also be integrated with an intelligent printer to print product information directly on the bags.
