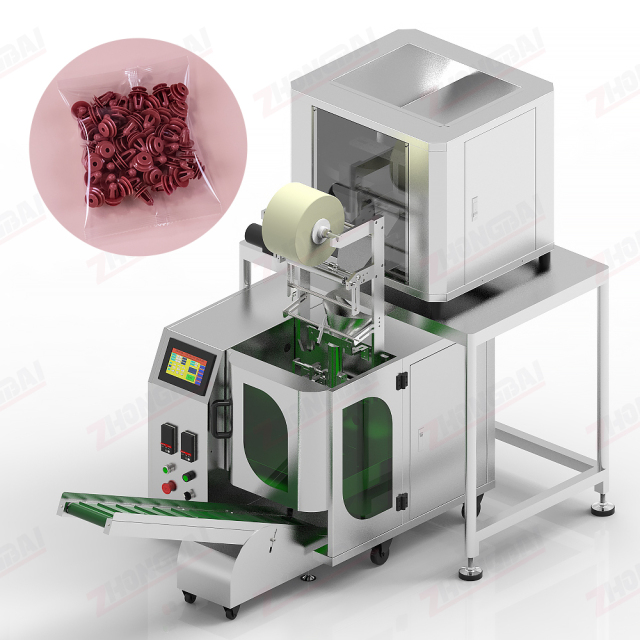

Rubber Components Packing Machine with Electronic Weigher
No.ZB-RP291
▶ ZB-W60Q2 High Accuracy Automatic Weighing Packing Machine. ▶ The machine is suitable for small rubber components and plastic parts. ▶ Capable of handling pack weights up to 500g.
User Manual One Year Warranty Install & Debug Videos Custom Packing Solution Free Lifetime Technical Support
Highlights: ▶ This rubber componetns packing machine machine can accommodate rubber components up to 40mm in length. (Up to 60mm is available, depending on its configuration). ▶ The machine allows for easy adjustment of the weight per package and the total number of packages in an order, providing flexibility for your specific packaging requirements.
Features:
● Automation: automatically perform tasks such as feeding, weiging, filling, bagging, sealing, output production calculating and even labeling or printing, significantly reducing the need for manual labor.
● High Accuracy Weighing: incorporates high-precision electronic scales to ensure consistent weight for each package while accommodating various product sizes and shapes.
● User-Friendliness: 7 inch touchscreen with English user-friendly interface that make it easy for operators to set up and monitor the packaging process.
● Self Diagnosis: the machine incorporates fault detection and diagnosis systems that can automatically identify and alert operators to potential issues, reducing downtime and maintenance costs.
● Durable Structure: constructed with stainless steel and designed for easy cleaning and maintenance.
● Customizable Solutions: our machines accommodate a wide variety of components, offering versatile solutions to meet diverse packaging needs. Customization options allow the equipment to be tailored to specific production requirements, enhancing flexibility and operational efficiency.
Main Structure:
Technical Specificatioin: Model: ZB-W60Q2 Capacity: 3-20bags/min Weighing range: 2-100g/50-500g/customize Bag width: max. 150mm | 200mm | 250mm | customize Bag length: max. 200mm | 300mm | 400mm | customize Total power: 1.8KW Voltage: 220V, 50/60HZ Machine Dimension: (L)1900×(W)1050×(H)1500mm Packing material: Plastic film | Paper film | Premade pouch
Packaging Samples:
Optioinal Devices:
FAQ
1. What types of rubber components can this packing machine handle?
The ZB-W60Q2 Weighing Packing Machine is a versatile system designed for a wide range of small rubber and plastic components. It can effortlessly handle loose, non-sticky, and non-overlapping items such as rubber plugs, rubber tubes, silicone parts, and other custom molded rubber components. It can accommodate components up to 40mm in length (with options up to 60mm available based on configuration).
2. How does the machine ensure high weighing accuracy？
The machine incorporates high-precision electronic scales, the feeding features two-stage control with fast and slow speeds: fast feeding ensures efficiency, while slow feeding guarantees accuracy, and the combination of the two stage speed achieves high-precision dosing.
3. Can the machine apply the label on the bags?
Yes, the machine can be integrated with the labelling device to apply a label on the bags automatically. It can also be integrated with an intelligent printer to print product information directly on the bags.
