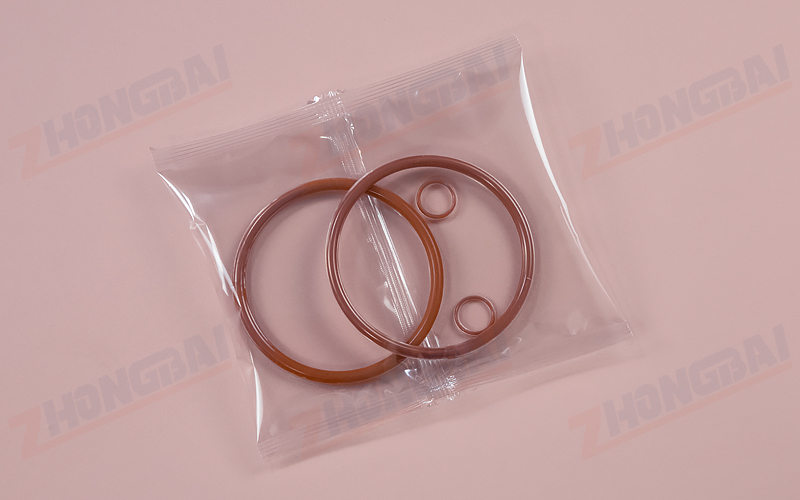

Highlights: ▶ The machine is a highly flexible solution designed for packing o-ring kits. ▶ It achieves a packing speed of up to 35 bags/min. ▶ It handles O-rings with an outer diameter of up to 60mm. ▶ The machine can be configured to accommodate o-rings up to 90mm in diameter.
Features:

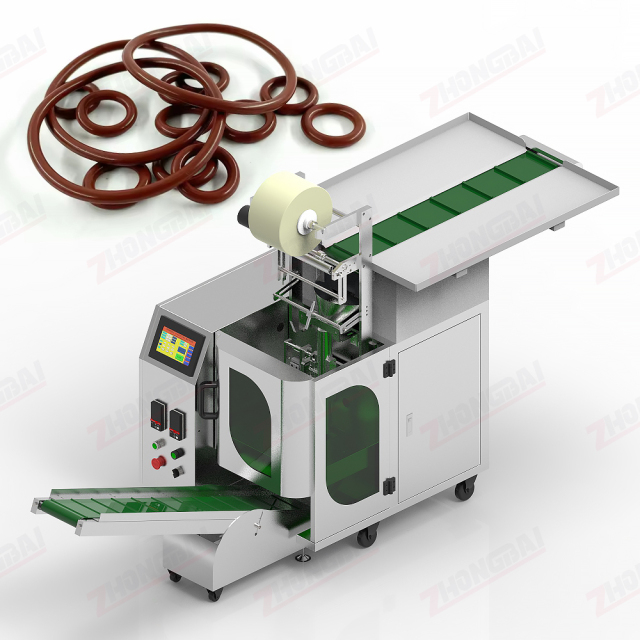

● Manual Feeding: The operator places components onto the conveyor, which then moves and synchronizes with the bagging system via integrated controls.
● Cost-Effective Solution: ideal for versatile and low-volume packaging operations and featuring a significantly lower initial investment than fully automatic systems. ● High Flexibility: quick changeover between different products and packaging formats with minimal adjustments. ● User-Friendly Interface: touchscreen human-machine Interface for easy operation, parameter setting, real-time monitoring and troubleshooting. ● Self Diagnosis: the machine incorporates fault detection and diagnosis systems that can automatically identify and alert operators to potential issues, reducing downtime and maintenance costs. ● Durable Structure: constructed with stainless steel and designed for easy cleaning and maintenance. ● Customizable Solutions: our machines accommodate a wide variety of components, offering versatile solutions to meet diverse packaging needs. Customization options allow the equipment to be tailored to specific production requirements, enhancing flexibility and operational efficiency.
Main Structure:
Technical Specificatioin: Model: ZB-C60 Capacity: 10-35bags/min Bag width: max. 150mm | 200mm | 250mm | customize Bag length: max. 200mm | 300mm | 400mm | customize Total power: 1.6KW Voltage: 220V,50/60HZ Machine Dimension: (L)2300×(W)900×(H)1500mm Packing material: Plastic film | Paper film | Premade pouch
User Manual
One Year Warranty
Install & Tutorial Videos
Custom Packing Solution
Free Lifetime Technical Support
