Screw Counting Packing Machine with Two Vibratory Bowl Feeders
No.ZB-S221
▶ ZB-60D2 High Accuracy Screw Counting Packing Machine with Two Vibratory Bowl Feeders. ▶ Advanced sensors and software algorithms providing a high accuracy solution for automating the screw counting process.
User Manual One Year Warranty Install & Tutorial Videos Custom Packing Solution Free Lifetime Technical Support

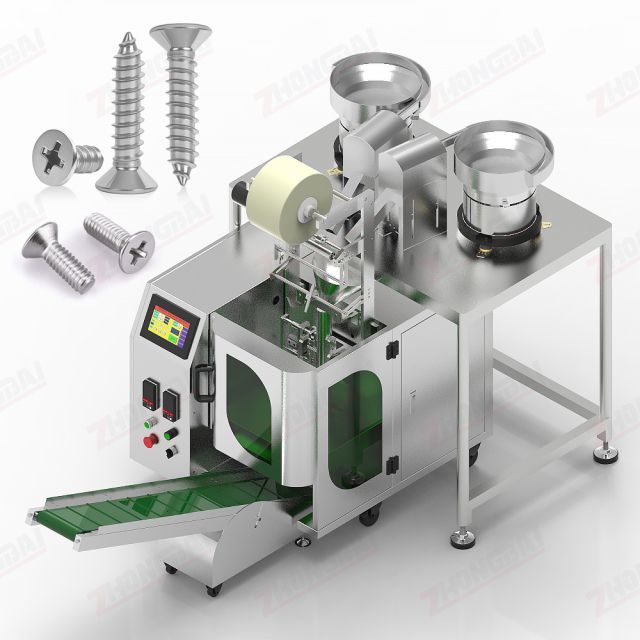

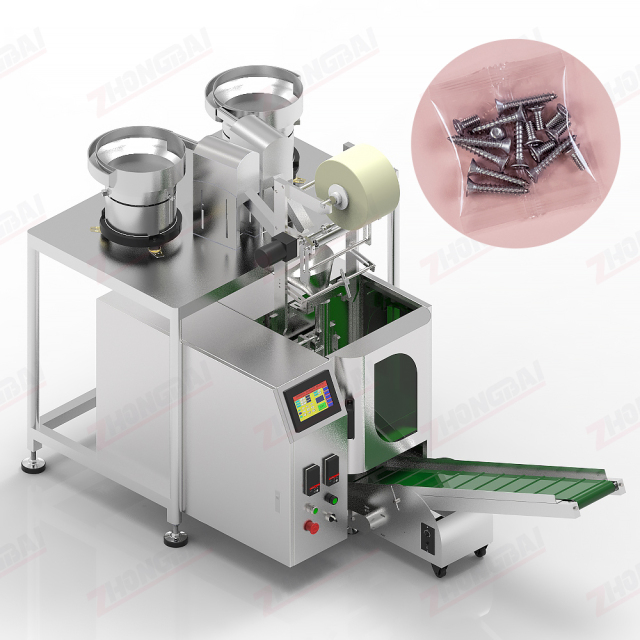

Overview: ZHONGBAI screw counting packing machine with two vibratory bowl feeders ZB-60D2 is an advanced automated packaging system designed for hardware, fasteners, and small components. Featuring dual independent vibratory bowls, it streamlines the packaging process by automatically feeding, counting, filling, bagging, and sealing. It can either boost single-item packing speed or accurately mix two different parts into one bag.
Features:
● Automation: automatically perform tasks such as feeding, counting, filling, bagging, sealing, output production calculating and even labeling or printing, significantly reducing the need for manual labor.
● High Accuracy Counting: advanced sensors and software algorithms ensure precise counting for the components, minimizing errors and waste.
● User-Friendliness: 7 inch touchscreen with English user-friendly interface that make it easy for operators to set up and monitor the packaging process.
● Self Diagnosis: the machine incorporates fault detection and diagnosis systems that can automatically identify and alert operators to potential issues, reducing downtime and maintenance costs.
● Durable Structure: constructed with stainless steel and designed for easy cleaning and maintenance.
● Customizable Solutions: our machines accommodate a wide variety of components, offering versatile solutions to meet diverse packaging needs. Customization options allow the equipment to be tailored to specific production requirements, enhancing flexibility and operational efficiency.
Main Structure:
Technical Specificatioin: Model: ZB-60D2 Capacity: 10-50bags/min Counting quantity: set on touch screen Bag width: max. 150mm | 200mm | 250mm | customize Bag length: max. 200mm | 300mm | 400mm | customize Total power: 2.1KW Voltage: 220V, 50/60HZ Machine Dimension: (L)2150×(W)1050×(H)1500mm Packing material: Plastic film | Paper film | Premade pouch
Packaging Samples:
Optioinal Devices:
FAQ
1. What is the screw size compatibility of this screw counting packing machine?
This machine was specifically engineered for a U.S. client to kit and package two screw varieties with 50mm maximum length. By integrating purpose-designed vibratory bowl feeders, it can be reconfigured to accommodate screws maximum 100mm in length.
2. Is the interface in English?
Yes. It features an English-language touch-screen human-machine interface (HMI) for easy operation. Other languages are available upon customer request.
3. Can I pack only one type of screw (e.g., using only one bowl)?
Yes, you can easily toggle individual bowls on or off via the touch screen interface. The machine will only execute the counting cycles for the active ones, allowing you to use the same machine for both single-type and mixed-type screw kits.
