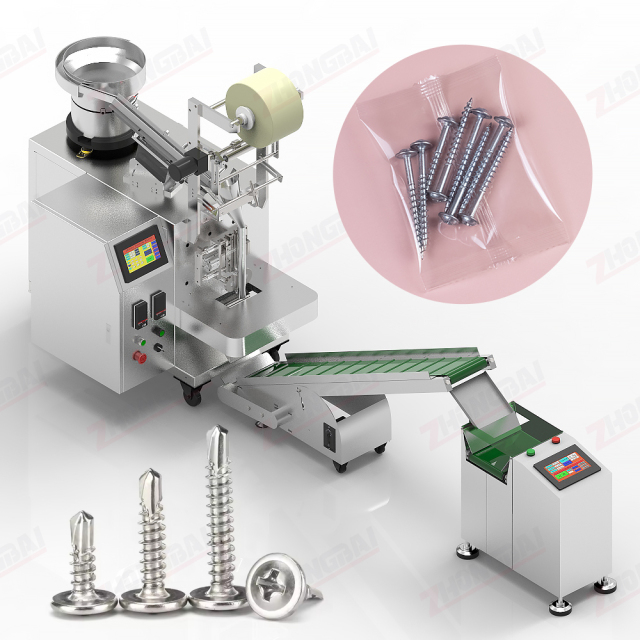

Screw Feeder Counting Bagging Machine with Check Weigher
No.ZB-S323

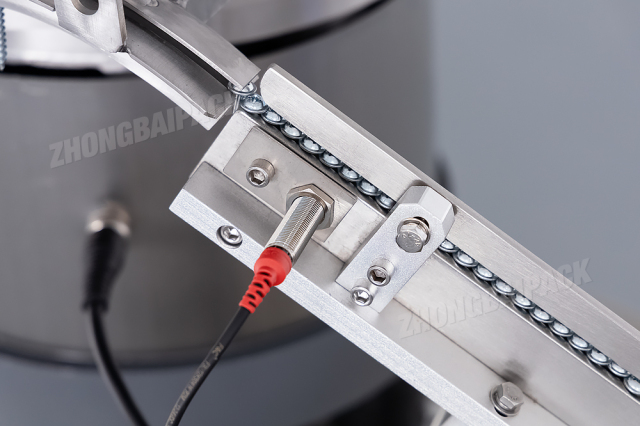

▶ ZB-60D1 Screw Vibration Bowl Feeder Bagging Machine with Check Weigher. ▶ This machine features automatic vibratory bowl feeding combined with a linear track counting mechanism for high-speed, precision counting.
User Manual One Year Warranty Install & Tutorial Videos Custom Packing Solution Free Lifetime Technical Support

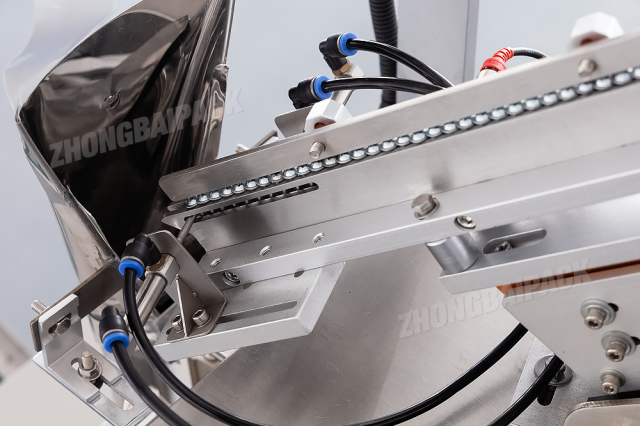

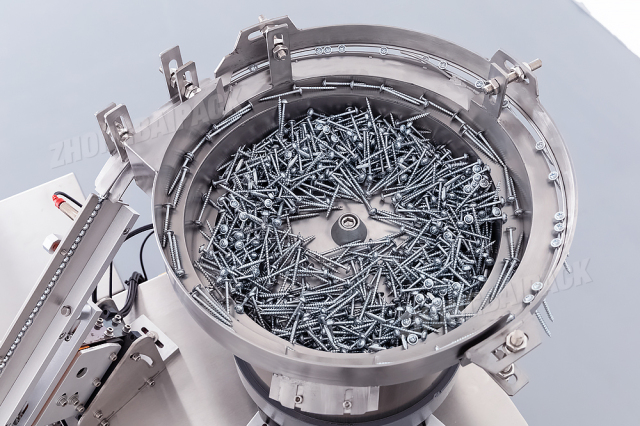

▶ This screw feeder bagging machine features automatic vibration bowl feeding combined with a linear track counting mechanism for high-speed, precision counting.

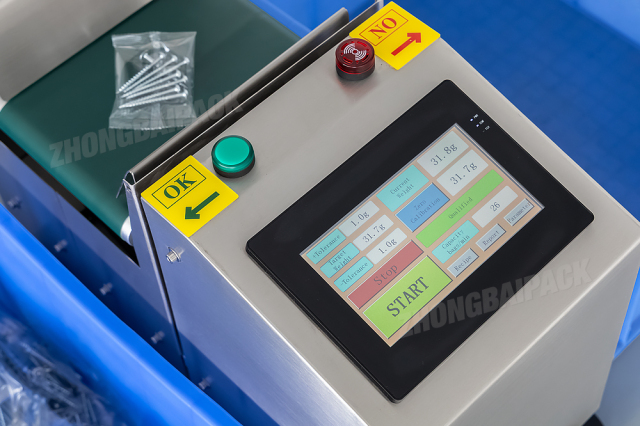

▶ Two methods are available for counting quantity changeover. Method A: Adjust the cylinder position according to the screw arrangement length to change the single-count quantity. Method B: Set the number of dispensing cycles via the touchscreen to determine the final package count. ▶ The check weigher is a quality control device integrated into the packaging line. It automatically weighs each package bags in motion, compares it against pre-set acceptable weight limits, and automatically rejects any underweight or overweight packaging.
Features:
● Automation: automatically perform tasks such as feeding, counting, filling, bagging, sealing, output production calculating and even labeling or printing, significantly reducing the need for manual labor.
● High Accuracy Counting: advanced sensors and software algorithms ensure precise counting for the components, minimizing errors and waste.
● User-Friendliness: 7 inch touchscreen with English user-friendly interface that make it easy for operators to set up and monitor the packaging process.
● Self Diagnosis: the machine incorporates fault detection and diagnosis systems that can automatically identify and alert operators to potential issues, reducing downtime and maintenance costs.
● Durable Structure: constructed with stainless steel and designed for easy cleaning and maintenance.
● Customizable Solutions: our machines accommodate a wide variety of components, offering versatile solutions to meet diverse packaging needs. Customization options allow the equipment to be tailored to specific production requirements, enhancing flexibility and operational efficiency.

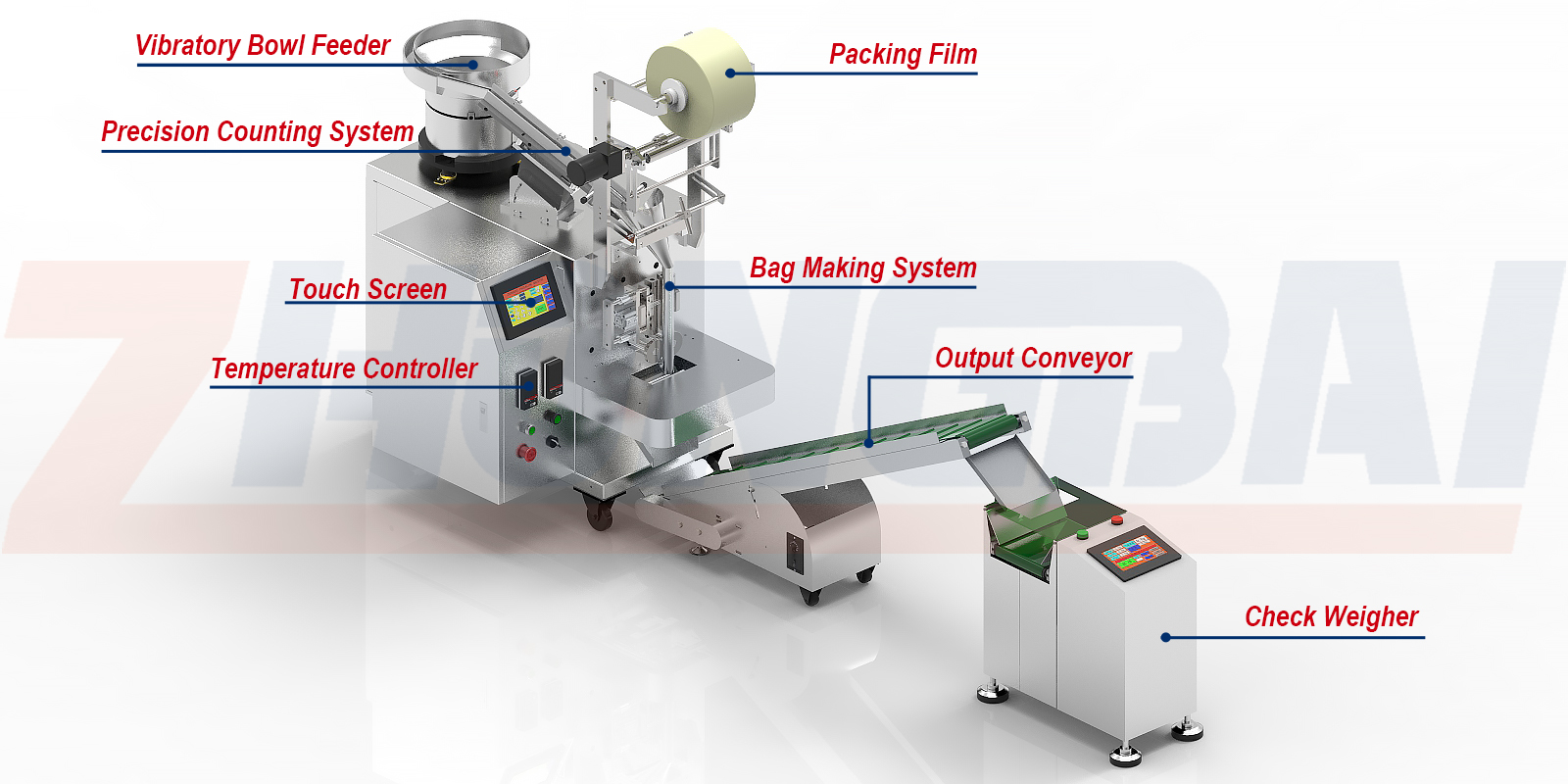

Main Structure:
Technical Specificatioin: Model: ZB-60D1 Capacity: 10-50bags/min Counting quantity: set on touch screen Bag width: max. 150mm | 200mm | 250mm | customize Bag length: max. 200mm | 300mm | 400mm | customize Total power: 1.8KW Voltage: 220V, 50/60HZ Machine Dimension: (L)2100×(W)750×(H)1500mm Packing material: Plastic film | Paper film | Premade pouch

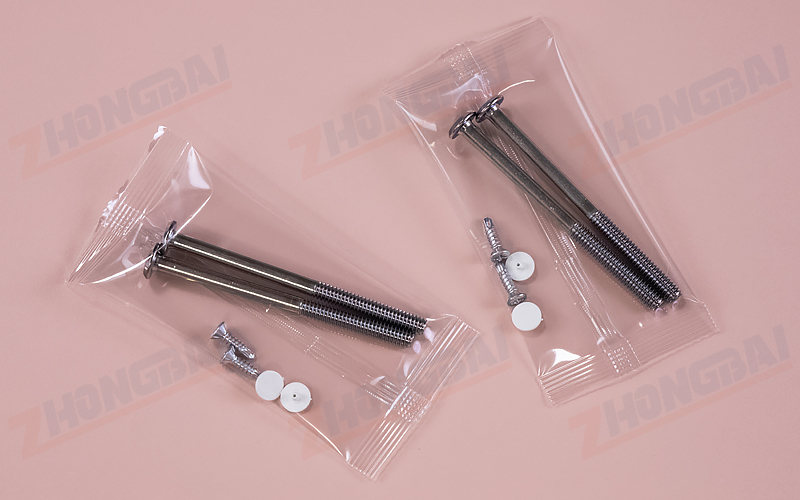

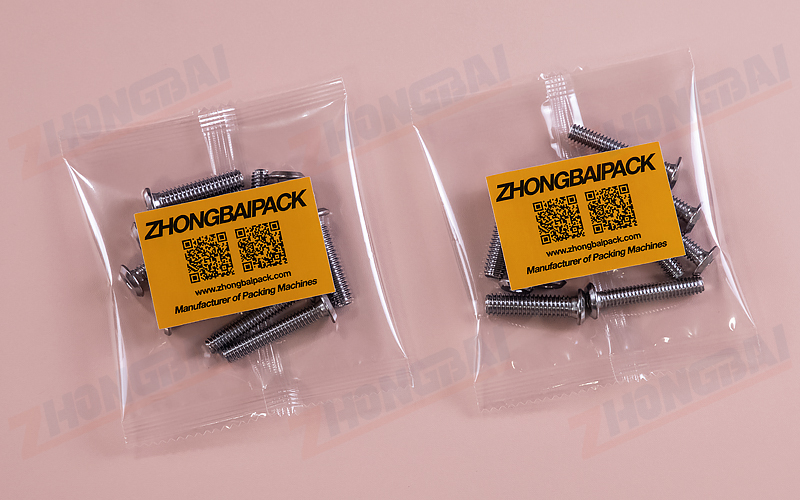

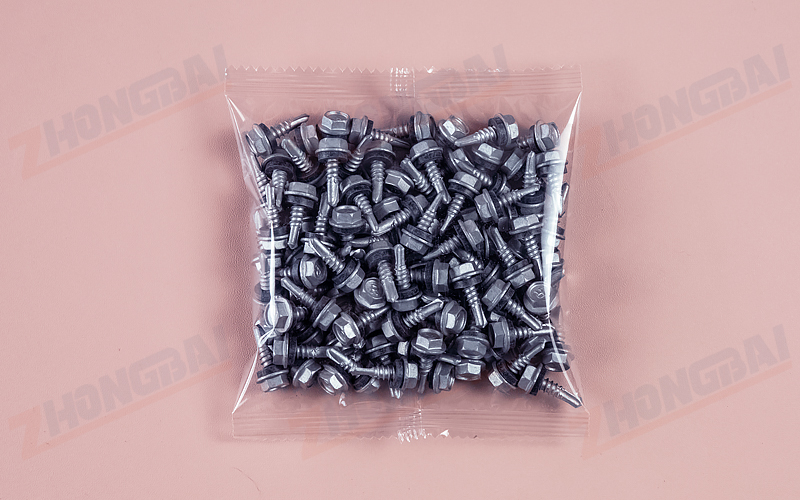

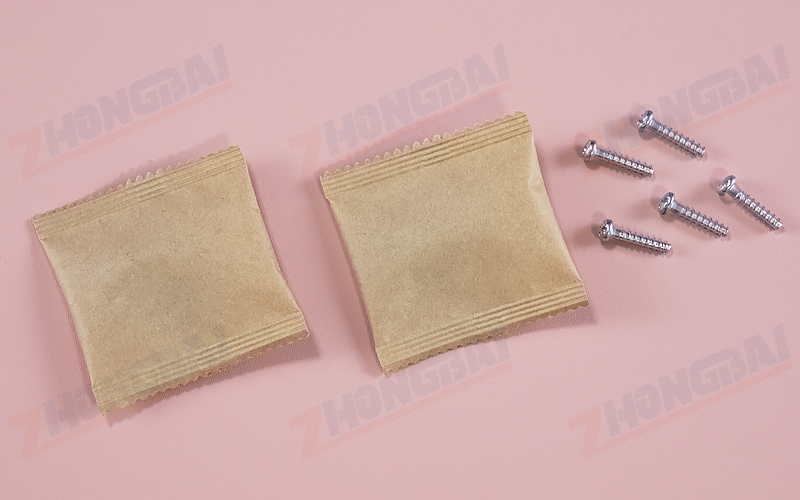

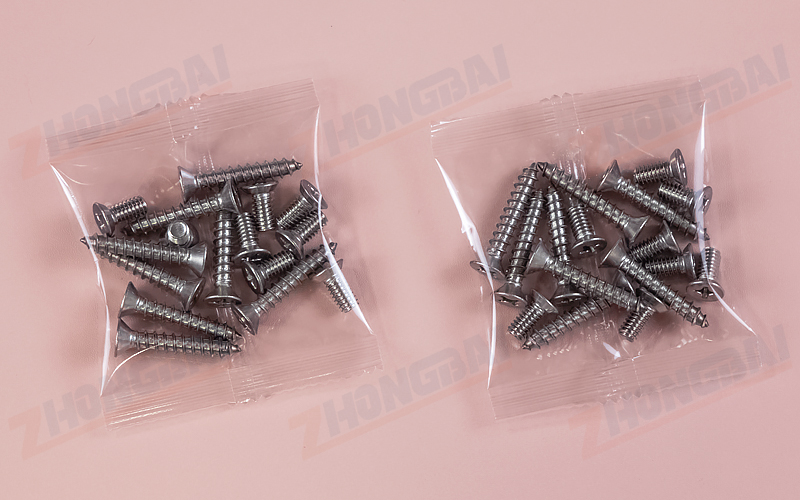

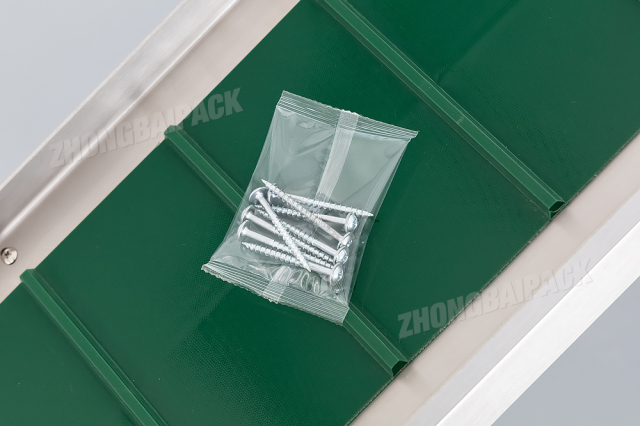

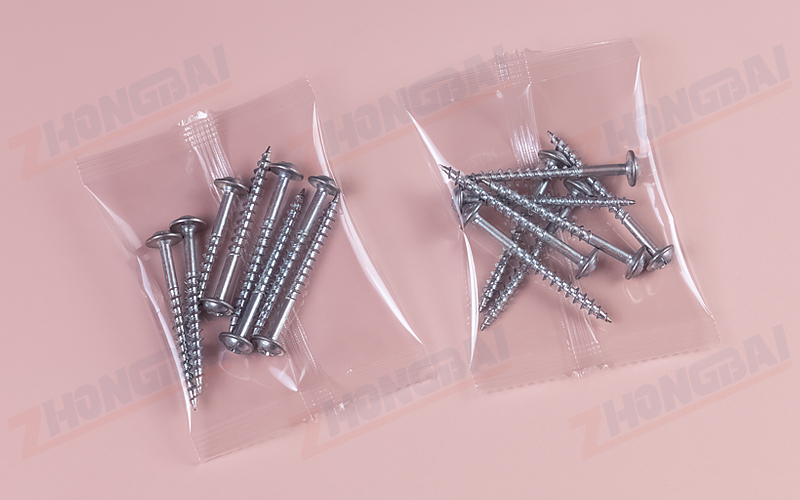

Packaging Samples:
Optioinal Devices:
FAQ
1. Is this machine able to handle different sizes of screws?
Yes, the machine is able to handle different screw sizes in a specific range.
2. Is the interface in English?
Yes. It features an English-language touch-screen human-machine interface (HMI) for easy operation. Other languages are available upon customer request.
3. What packaging materials can be used?
The machine accommodates standard heat-sealable composite packaging films, such as OPP/PE, PET/PE, and other laminated packing films.
