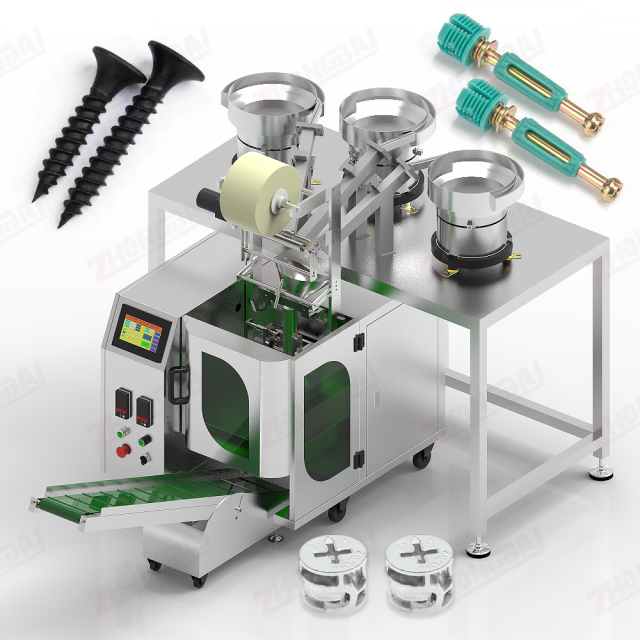

Automatic Screw Kitting Bagging Machine with 3 Feeders
No.ZB-S332
▶ ZB-60D3 Screw Kitting Bagging Machine with 3 Feeders. ▶ The machine features three independent bowl feeders, enabling it to package either complete sets or individual screw and components with flexible settings via the touch screen. ▶ High accuracy sensor counting with real-time data output and PLC integration.
User Manual One Year Warranty Install & Tutorial Videos Custom Packing Solution Free Lifetime Technical Support

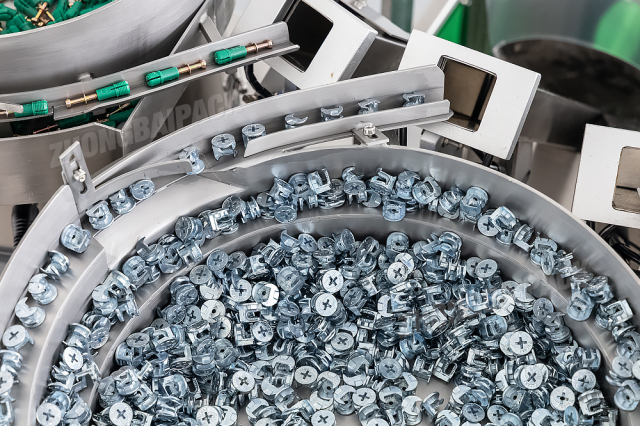

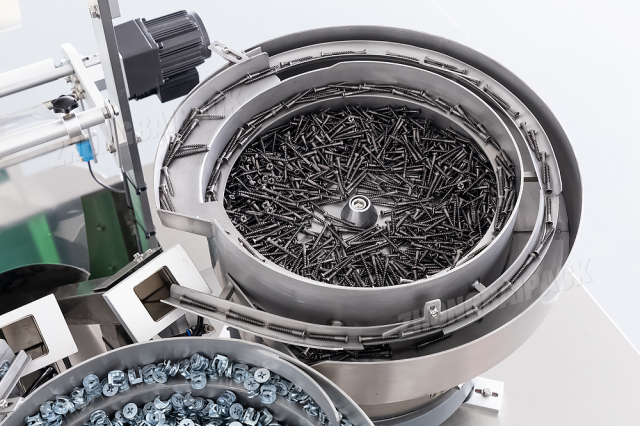

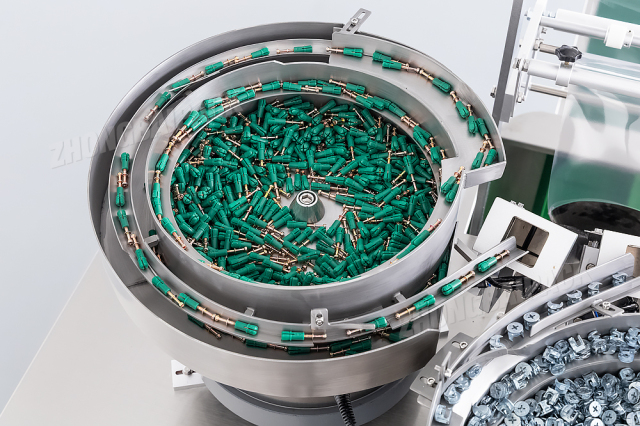

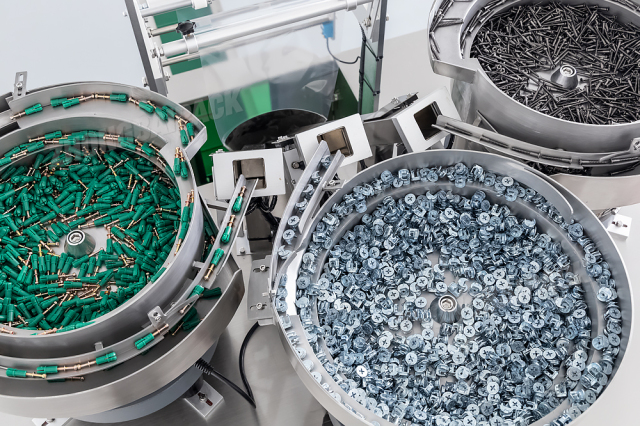

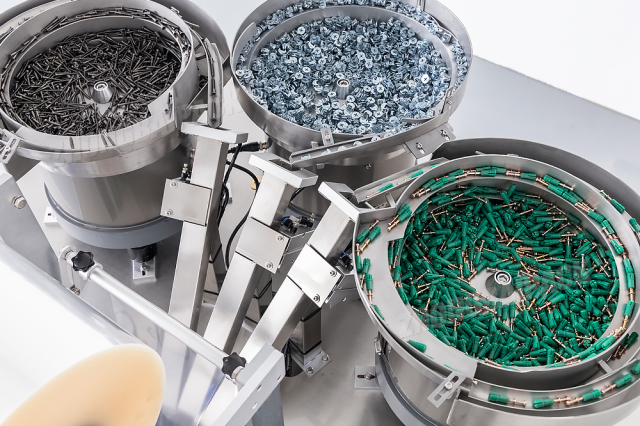

Highlights: ▶ The machine is equipped with three bowl feeders, allowing it to handle either kits of screw and components or a single type. ▶ High accuracy sensor counting with real-time data output and PLC integration. ▶ Operators can easily set the required counting quantity directly on the user-friendly interface, real-time monitoring of counting quantity is available on the touch screen.
Features:
● Automation: automatically perform tasks such as feeding, counting, filling, bagging, sealing, output production calculating and even labeling or printing, significantly reducing the need for manual labor.
● High Accuracy Counting: advanced sensors and software algorithms ensure precise counting for the components, minimizing errors and waste.
● User-Friendly Interface: touchscreen human-machine Interface for easy operation, parameter setting, real-time monitoring and troubleshooting.
● Self Diagnosis: the machine incorporates fault detection and diagnosis systems that can automatically identify and alert operators to potential issues, reducing downtime and maintenance costs.
● Durable Structure: constructed with stainless steel and designed for easy cleaning and maintenance.
● Customizable Solutions: our machines accommodate a wide variety of components, offering versatile solutions to meet diverse packaging needs. Customization options allow the equipment to be tailored to specific production requirements, enhancing flexibility and operational efficiency.
Main Structure:
Technical Specificatioin: Model: ZB-60D3 Capacity: 10-50bags/min Counting quantity: set on touch screen Bag width: max. 150mm | 200mm | 250mm | customize Bag length: max. 200mm | 300mm | 400mm | customize Total power: 2.4KW Voltage: 220V, 50/60HZ Machine dimension: (L)2150×(W)1400×(H)1500mm Packing material: Plastic film | Paper film | Premade pouch Packaging Samples:
