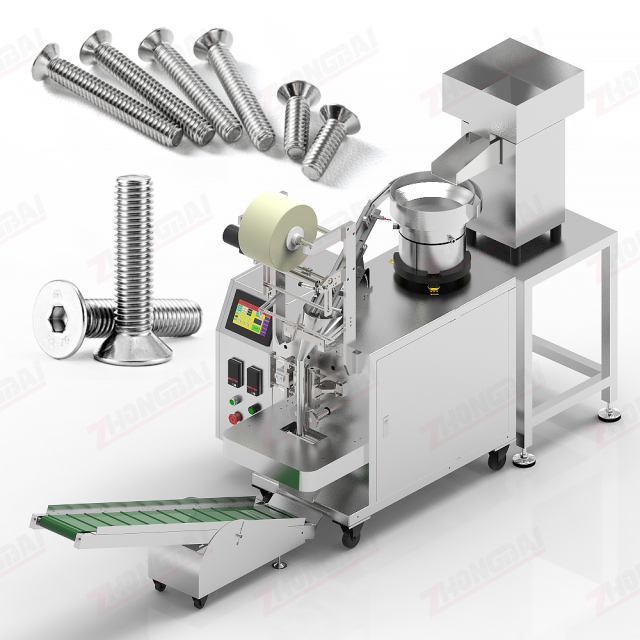

Screw Linear Track Counting Packing Machine with Refill Hopper
No.ZB-S251

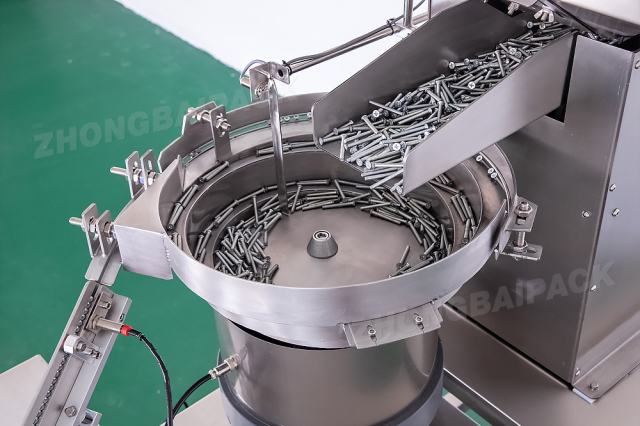

▶ ZB-60D1 automatic screw pouch packing machine with refill hopper. ▶ The machine use a linear track counting system, where screws are aligned and conveyed in-line past a high-precision sensor for accurate piece counting. ▶ This integrated system is equipped with refill hopper for non-stop operation and an integrated check weigher for guaranteed weight accuracy in every bag.
User Manual One Year Warranty Install & Tutorial Videos Custom Packing Solution Free Lifetime Technical Support

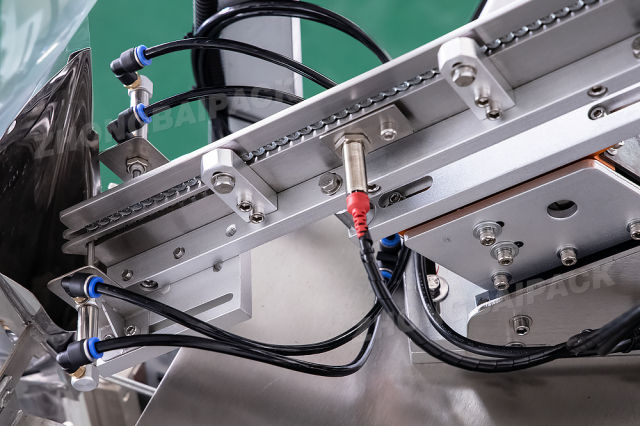

▶ The machine utilizes a straight-track counting method coupled with high-response photoelectric sensors, achieving high-precision and high-speed counting.
▶ The check weigher ensures that only packages with the correct weight are released as final products.
Features:
● Automation: automatically perform tasks such as feeding, counting, filling, bagging, sealing, output production calculating and even labeling or printing, significantly reducing the need for manual labor.
● High Accuracy Counting: advanced sensors and software algorithms ensure precise counting for the components, minimizing errors and waste.
● User-Friendliness: 7 inch touchscreen with English user-friendly interface that make it easy for operators to set up and monitor the packaging process.
● Self Diagnosis: the machine incorporates fault detection and diagnosis systems that can automatically identify and alert operators to potential issues, reducing downtime and maintenance costs.
● Durable Structure: constructed with stainless steel and designed for easy cleaning and maintenance.
● Customizable Solutions: our machines accommodate a wide variety of components, offering versatile solutions to meet diverse packaging needs. Customization options allow the equipment to be tailored to specific production requirements, enhancing flexibility and operational efficiency.
Main Structure:
Technical Specificatioin: Model: ZB-60D1 Capacity: 10-50bags/min Counting quantity: set on touch screen Bag width: max. 150mm | 200mm | 250mm | customize Bag length: max. 200mm | 300mm | 400mm | customize Total power: 1.8KW Voltage: 220V, 50/60HZ Machine Dimension: (L)2100×(W)750×(H)1500mm Packing material: Plastic film | Paper film | Premade pouch
