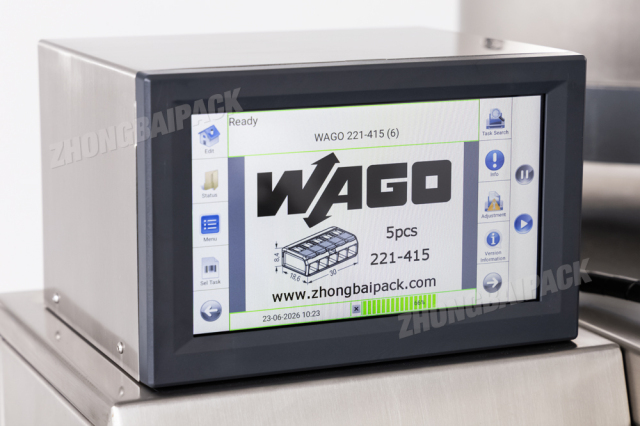

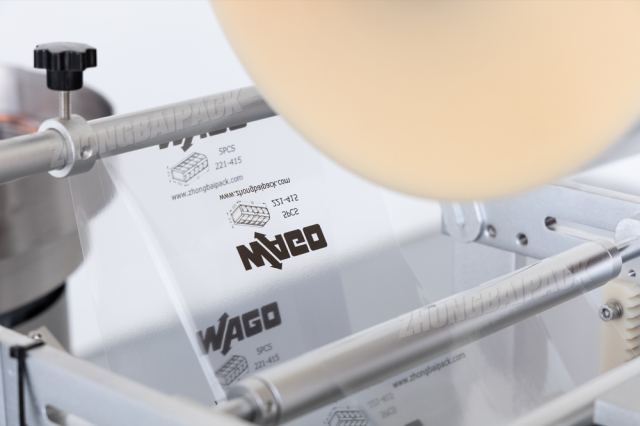

▶ ZB-60D1 Wire Connector Counting Packing Machine with Intellignt printer. ▶ Suitable for wire connectors, electrical connectors, quick conncetors, wire terminals in various sizes. ▶ The machine is equipped with an intelligent printer that features a user-friendly touchscreen interface, allowing for on-demand printing of variable data such as dates, QR codes, and logos. ▶ The machine is customized with the euro hole punching device, which makes a euro slot on the top of the packaging bag for hanging on retail displays.
User Manual One Year Warranty Install & Debug Videos Custom Packing Solution Free Lifetime Technical Support
Highlights: ▶ This wire connector packing machine is equipped with an intelligent printer that features a user-friendly touchscreen interface, allowing for on-demand printing of variable data such as dates, QR codes, and logos. ▶ The machine is customized with the euro hole punching device, which makes a euro slot on the top of the packaging bag for hanging on retail displays. ▶ The machine allows for easy adjustment of the quantity of items per package and the total number of packages in an order, providing flexibility for your specific packaging requirements.
Features:
● Automation: automatically perform tasks such as feeding, counting, filling, bagging, sealing, output production calculating and even labeling or printing, significantly reducing the need for manual labor.
● High Accuracy Counting: advanced sensors and software algorithms ensure precise counting for the components, minimizing errors and waste.
● User-Friendliness: 7 inch touchscreen with English user-friendly interface that make it easy for operators to set up and monitor the packaging process.
● Self Diagnosis: the machine incorporates fault detection and diagnosis systems that can automatically identify and alert operators to potential issues, reducing downtime and maintenance costs.
● Durable Structure: constructed with stainless steel and designed for easy cleaning and maintenance.
● Customizable Solutions: our machines accommodate a wide variety of components, offering versatile solutions to meet diverse packaging needs. Customization options allow the equipment to be tailored to specific production requirements, enhancing flexibility and operational efficiency.

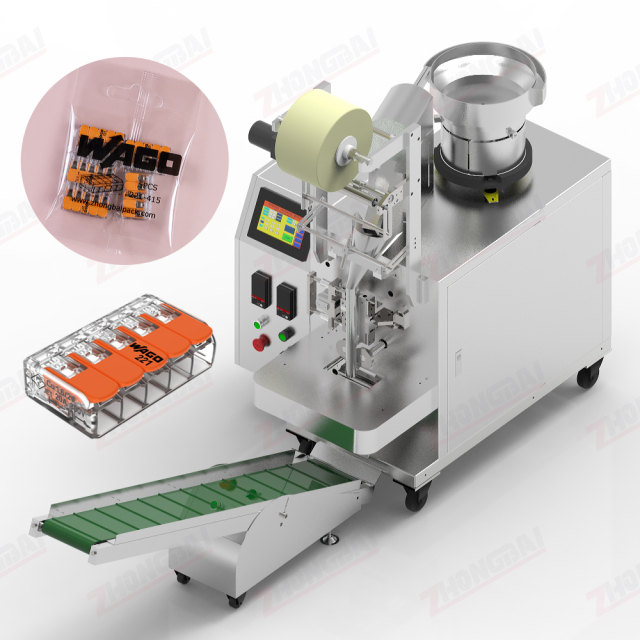

Main Structure:
Technical Specificatioin: Model: ZB-60D1 Capacity: 10-50bags/min Counting quantity: set on touch screen Bag width: max. 150mm | 200mm | 250mm | customize Bag length: max. 200mm | 300mm | 400mm | customize Total power: 1.8KW Voltage: 220V, 50/60HZ Machine Dimension: (L)2100×(W)750×(H)1500mm Packing material: Plastic film | Paper film | Premade pouch

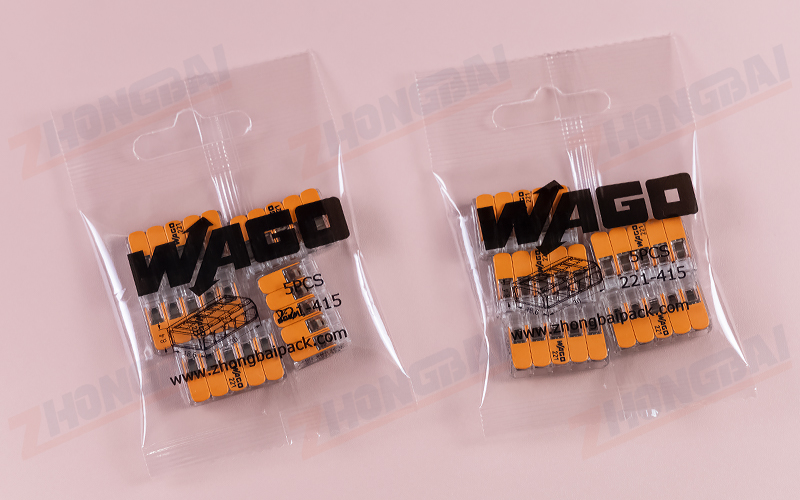

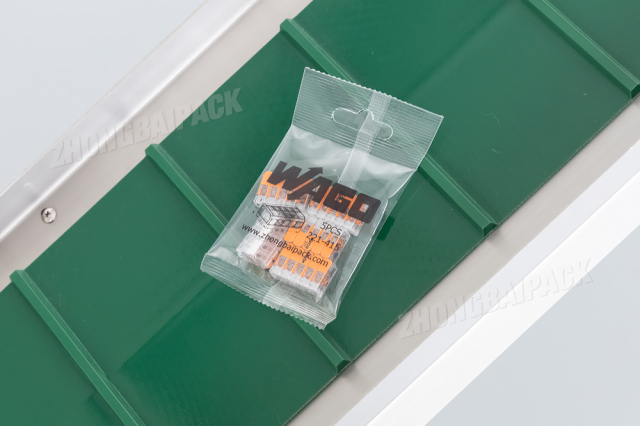

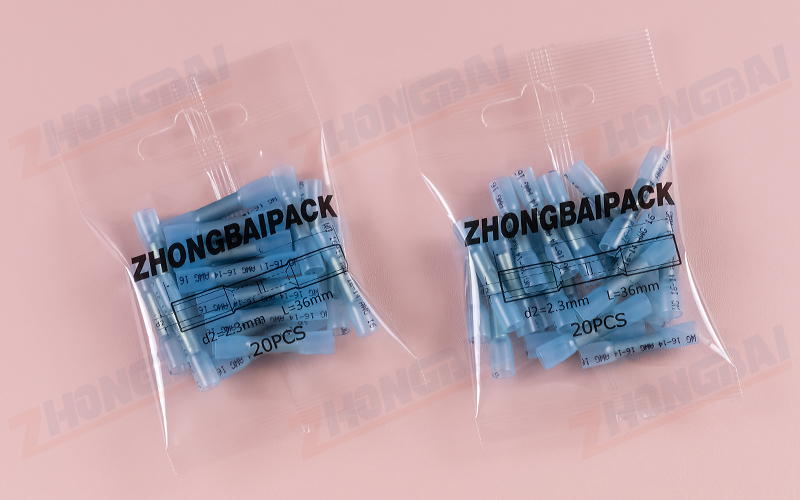

Packaging Samples:
Optioinal Devices:
FAQ
1. What kind of connectors can be pack by this machine?
The machine is suitable for various types of connectors, such as wire connectors, electrical connectors, quick connectors, wire terminals, and other plastic and hardware connectors.
2. Can it pack mulitiple types of wire connector in one bag?
Yes, absolutely. If you need to pack multiple types of wire connectors (e.g., different sizes, colors, or male/female terminals) into one single bag, the machine can be equipped with multi-bowl feeder counting systems.
