Furniture Fastener Assembly Kit Packing Machine with 10 bowl Feeders
No.ZB-FF293

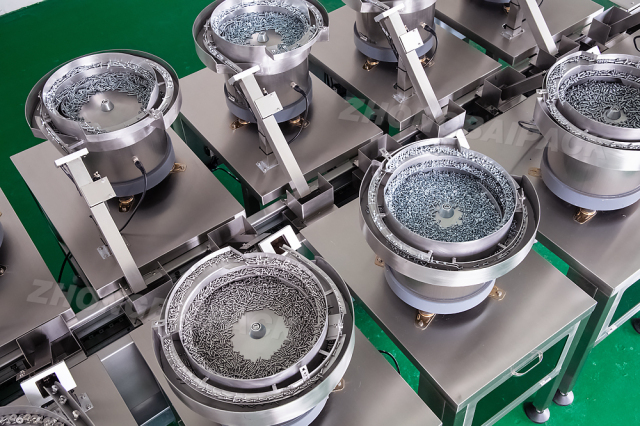

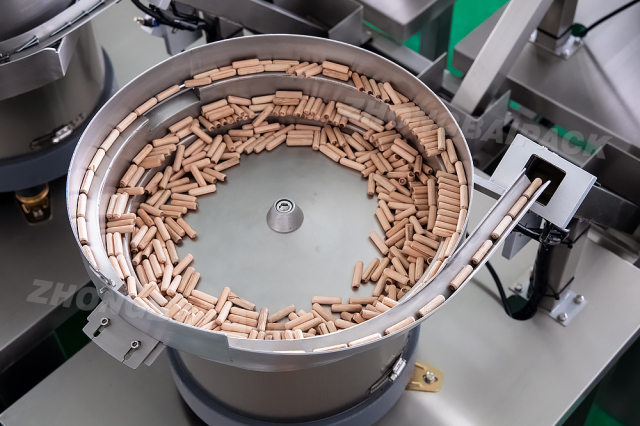

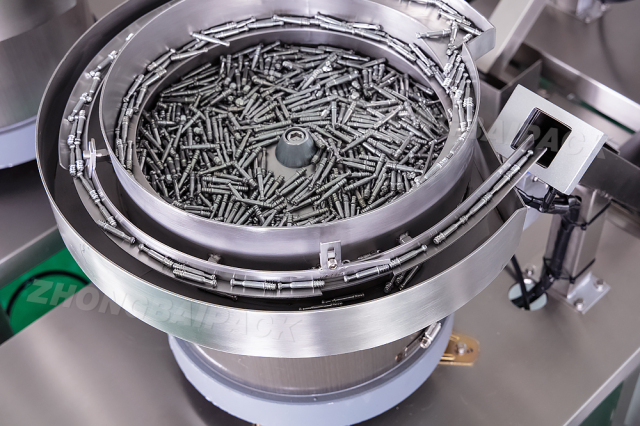

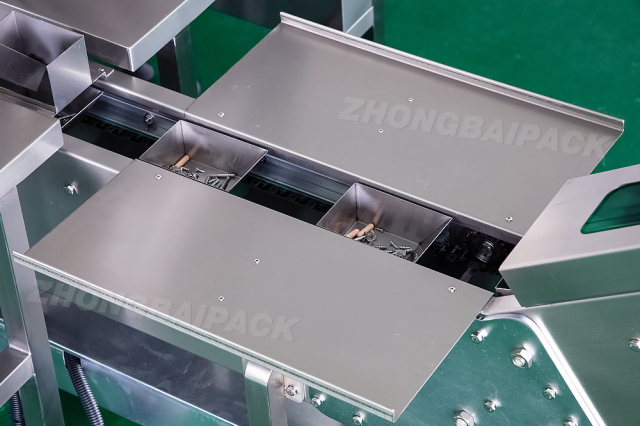

▶ ZB-T60D10 Furntiure Fastener Assembly Kit Packing Machine with 10 Bowl Feeders. ▶ The flexible design of the vibratory bowl feeders enables quick changeover between various furniture fasteners and fittings. ▶ Incorporates a manual feeding station offers flexibility in packaging various furniture hardware items, such as hinges, handles, and knobs.
User Manual One Year Warranty Install & Debug Videos Custom Packing Solution Free Lifetime Technical Support
Highlights: ▶ The system uses PLC and HMI controls, allowing operators to select pre-set "recipes" on a touch screen to switch all related parameters for different furniture assembly kits, such as feeder operation, count quantity, and packaging settings. ▶ The system incorporates a manual feeding station, which offers the flexibility to handle diverse furniture fittings for future requirements.
Features:
● Automation: automatically perform tasks such as feeding, counting, filling, bagging, sealing, output production calculating and even labeling or printing, significantly reducing the need for manual labor.
● High Precision Counting: advanced sensors and software algorithms ensure precise counting and reduce the risk of missing or extra components.
● Versatility: the machines can be adapted to package hardware and plastic components in various sizes and shapes. They come with adjustable settings for product count and bag length , allowing customization based on the specific packaging requirements.
● User-Friendly Interface: touchscreen human-machine Interface for easy operation, parameter setting, real-time monitoring and troubleshooting.
● Programmable Recipes: allows operators to set up different packaging configurations recipes that specify the quantities of each component in a kit.
● Flexible Configuration: modular design enables easy addition or removal of counting modules to accommodate changes in product offerings.
● Self Diagnosis: the machine incorporates fault detection and diagnosis systems that can automatically identify and alert operators to potential issues, reducing downtime and maintenance costs.
● Durable Construction: built with high-quality materials, our packaging machines are designed to withstand the rigorous demands of industrial environments. The robust construction ensures long-term durability and reliable performance.
● Customizable Solutions: our machines accommodate a wide variety of components, offering versatile solutions to meet diverse packaging needs. Customization options allow the equipment to be tailored to specific production requirements, enhancing flexibility and operational efficiency.

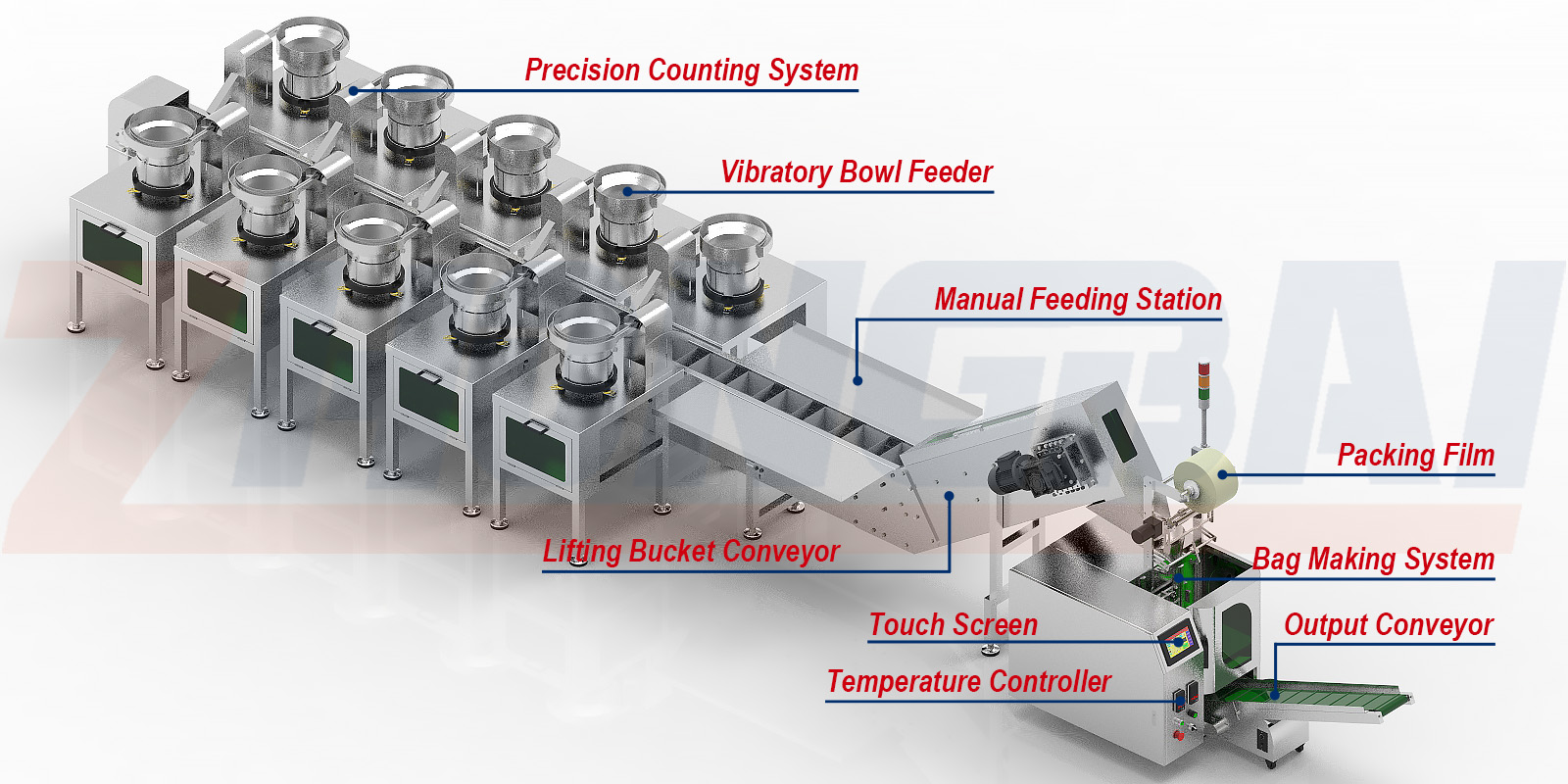

Main Structure:
Technical Specificatioin: Model: ZB-T60D10 Capacity: 10-30bags/min Counting quantity: set on touch screen Bag width: max. 150mm | 200mm | 250mm | customize Bag length: max. 200mm | 300mm | 400mm | customize Total power: 5KW Voltage: 220V, 50/60HZ Machine dimension: (L)7400×(W)1600×(H)1900mm Packing material: Plastic film | Paper film | Premade pouch
