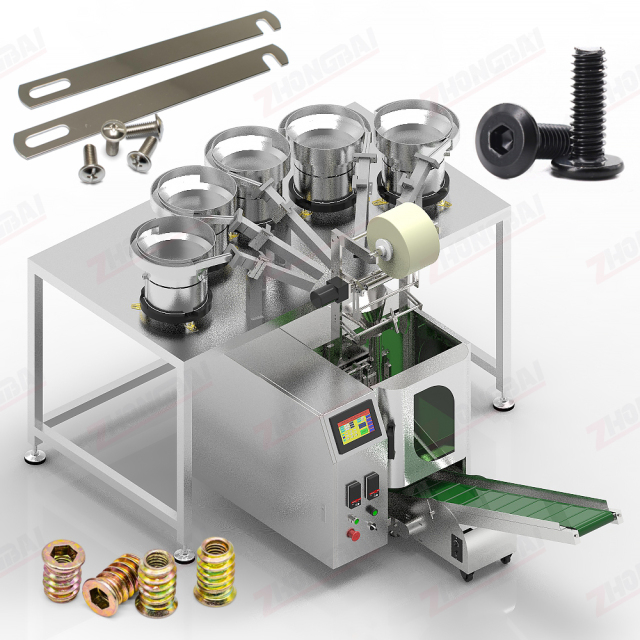

Furniture Small Hardware Accessories Counting Packing Machine with 5 Bowl Feeders
No.ZB-FF253
▶ ZB-60D5 automatic furniture small hardware accessories packing machine with 5 bowl feeders ▶ High-speed, accurate packaging of screw, dowels, connectors, furniture fittings etc. ▶ The counting quantity for each bowl feeder can be freely set on the display screen.
User Manual One Year Warranty Install & Tutorial Videos Custom Packing Solution Free Lifetime Technical Support
Highlights: ▶ Flexible design for vibratory bowl feeders enables quick changeover between different parts, allowing it to handle a wide range of furniture fittings. ▶ The machine has a compact structure and easy operation.
Features:
● Automation: automatically perform tasks such as feeding, counting, filling, bagging, sealing, output production calculating and even labeling or printing, significantly reducing the need for manual labor.
● High Accuracy Counting: advanced sensors and software algorithms ensure precise counting for the components, minimizing errors and waste.
● User-Friendliness: 7 inch touchscreen with Ensligh user-friendly interface that make it easy for operators to set up and monitor the packaging process.
● Self Diagnosis:the machine incorporates fault detection and diagnosis systems that can automatically identify and alert operators to potential issues, reducing downtime and maintenance costs.
● Durable Structure: constructed with stainless steel and designed for easy cleaning and maintenance.
● Customizable Solutions: our machines accommodate a wide variety of components, offering versatile solutions to meet diverse packaging needs. Customization options allow the equipment to be tailored to specific production requirements, enhancing flexibility and operational efficiency.

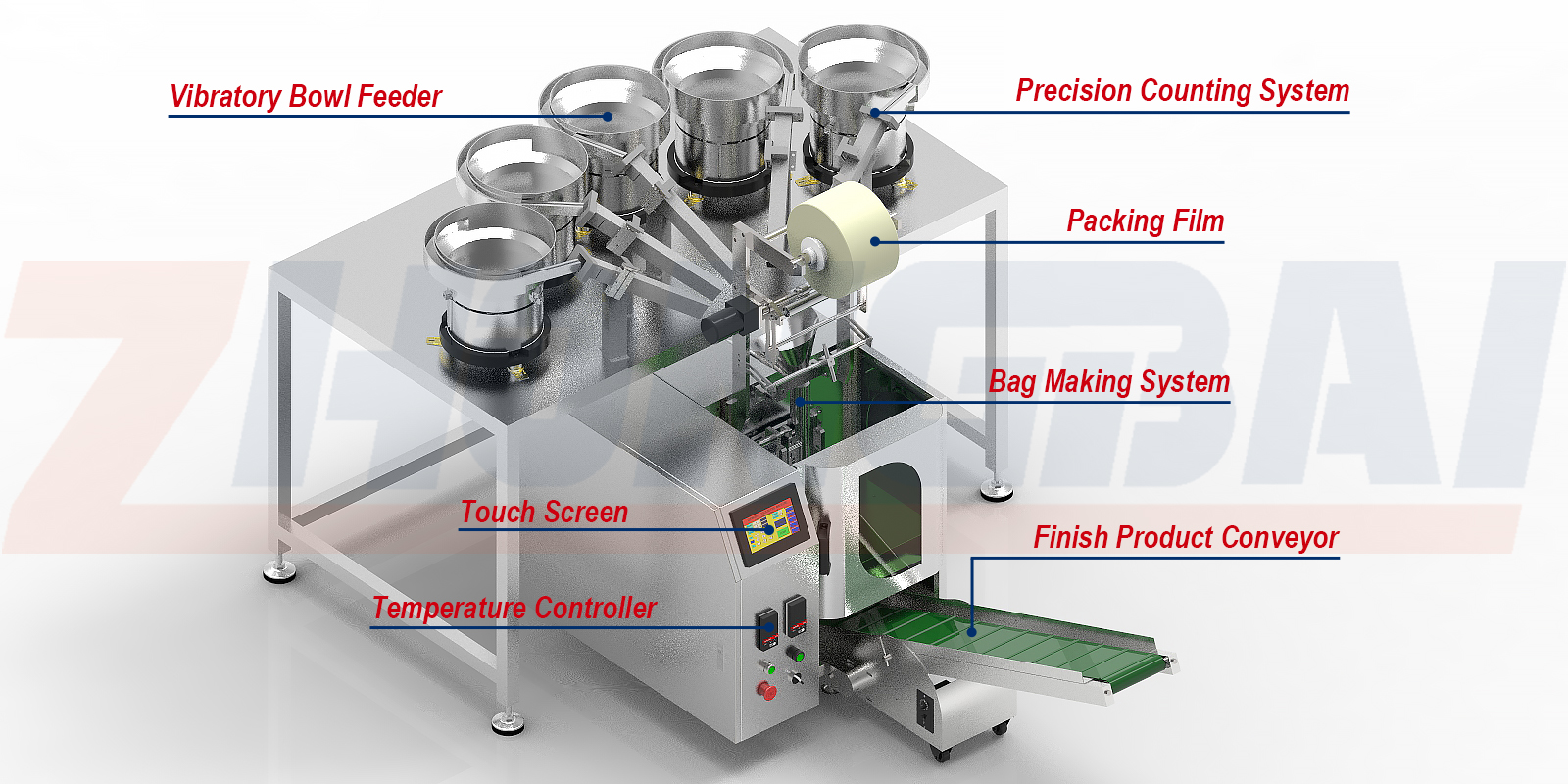

Main Structure:
Technical Specificatioin: Model: ZB-60D5 Capacity: 10-50bags/min Counting quantity: set on touch screen Bag width: max. 150mm | 200mm | 250mm | customize Bag length: max. 200mm | 300mm | 400mm | customize Total power: 3KW Voltage: 220V, 50/60HZ Machine dimension: (L)2350×(W)1800×(H)1500mm Packing material: Plastic film | Paper film | Premade pouch
