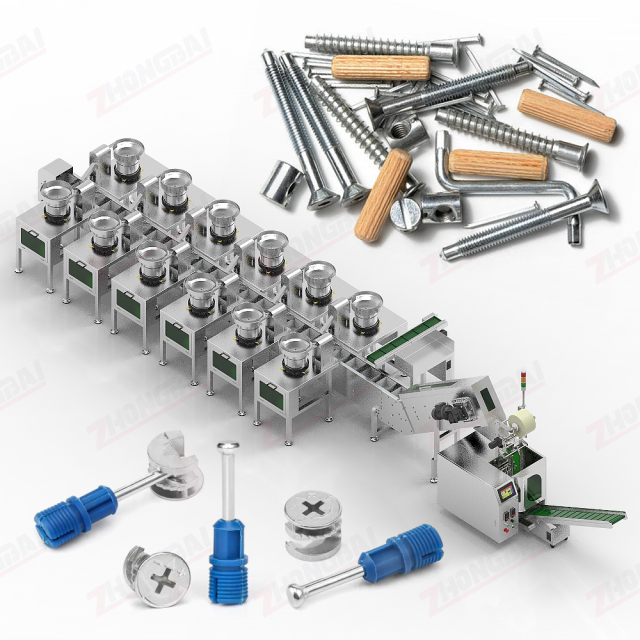

Furniture Fastener Fittings Sorting Packing Machine with 12 Bowl Feeders
No.ZB-FF226
▶ ZB-T60DX furniture fastener fittings sorting packing machine with 12 bowl feeders. ▶ This machine can achieve two packaging modes: individual packaging and linked bag packaging. Both the bag length and furniture accessories are individually adjustable for linked bag packaging. ▶ The manual feeding conveyor is incorporated to provide flexibility in packaging various furniture items, such as hinges, handles, and knobs, plastic angles etc.
User Manual One Year Warranty Install & Tutorial Videos Custom Packing Solution Free Lifetime Technical Support
Highlights: ▶ This furniture fasteners and fititngs packing machine is engineered for maximum versatility, capable of producing both individual single bags and a continuous chain of linked bags with a fast, straightforward switchover. ▶ The machine is equipped with an intelligent printer that can print essential information, such as QR codes, batch numbers, or dates, directly onto the packaging. ▶ It incorporates a manual feeding conveyor, offering flexibility in packaging various irregularly shaped furniture items, such as hinges, handles, and knobs.
Features:
● Automation: automatically perform tasks such as feeding, counting, filling, bagging, sealing, output production calculating and even labeling or printing, significantly reducing the need for manual labor.
● High Precision Counting: advanced sensors and software algorithms ensure precise counting and reduce the risk of missing or extra components.
● Versatility:the machines can be adapted to package hardware and plastic components in various sizes and shapes. They come with adjustable settings for product count and bag length , allowing customization based on the specific packaging requirements.
● User-Friendly Interface:touchscreen human-machine Interface for easy operation, parameter setting, real-time monitoring and troubleshooting.
● Programmable Recipes:allows operators to set up different packaging configurations recipes that specify the quantities of each component in a kit.
● Flexible Configuration: modular design enables easy addition or removal of counting modules to accommodate changes in product offerings.
● Self Diagnosis: the machine incorporates fault detection and diagnosis systems that can automatically identify and alert operators to potential issues, reducing downtime and maintenance costs.
● Durable Construction: built with high-quality materials, our packaging machines are designed to withstand the rigorous demands of industrial environments. The robust construction ensures long-term durability and reliable performance.
● Customizable Solutions:our machines accommodate a wide variety of components, offering versatile solutions to meet diverse packaging needs. Customization options allow the equipment to be tailored to specific production requirements, enhancing flexibility and operational efficiency.

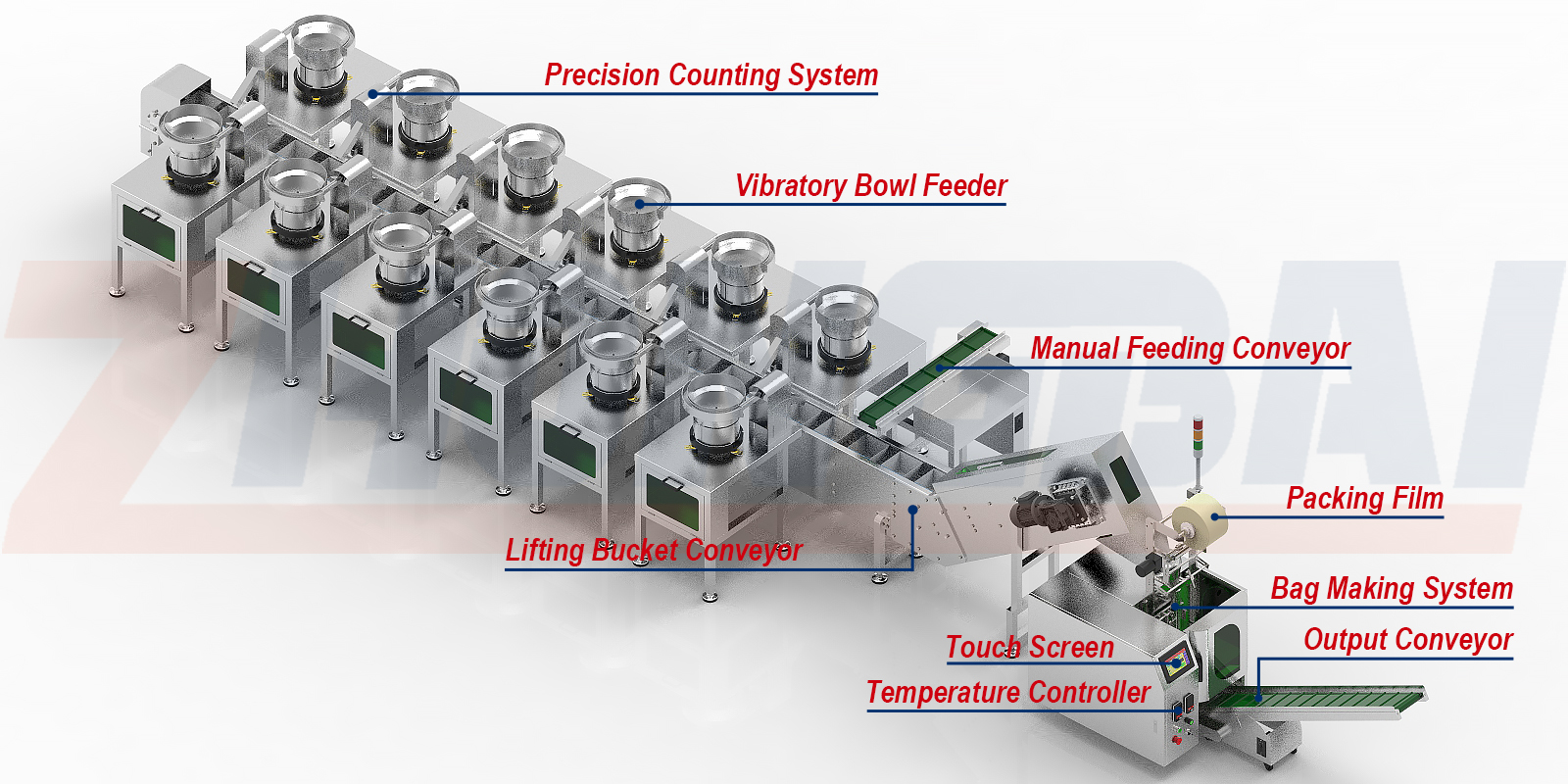

Main Structure:
Technical Specificatioin: Model: ZB-T60DX Capacity: 10-30 bags/min Counting quantity: set on touch screen Bag width: max. 150mm | 200mm | 250mm | customize Bag length: max. 200mm | 300mm | 400mm | customize Total power: 5KW Voltage: 220V, 50/60HZ Packing material: Plastic film | Paper film | Premade pouch
